| Basic Information | |
| Supported CPU | Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package |
| Chipset | Intel® H110 Express Chips |
| BIOS | 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3 connector |
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots |
| Memory | |
| Maximum Memory | 32 GB |
| Supported Memory | Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | 2 x DDR4 DIMM |
| Slots | Dual-channel memory architecture |
| Connector & Ports | |
| Audio | 1 x front panel audio header 3 x audio jacks (Line In, Line Out, Mic In) |
| D-Sub (s) | 1 x D-Sub port |
| DVI-D (s) | 1 x DVI-D port |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper |
| LAN Port (s) | Intel® GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | 1 x M.2 connector 4 x SATA 6Gb/s connectors |
| USB (s) | 4 x USB 3.1 Gen 1 ports 6 x USB 2.0/1.1 ports |
| Warranty Information | |
| Warranty | 02 years |

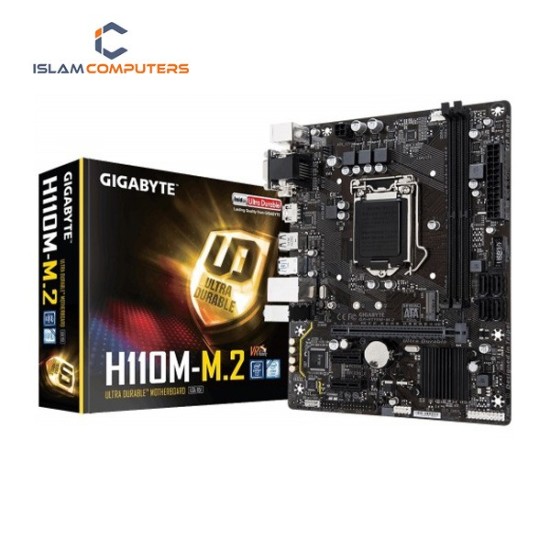

The Gigabyte GA-H110M-M.2 DDR4 is a high-performance, reliable motherboard designed for users who want to build a stable, efficient, and feature-rich computing experience. Engineered with Intel's H110 chipset, this motherboard is fully compatible with Intel 6th and 7th-generation Core processors, delivering seamless performance for both professional and personal computing tasks. Whether you are building a compact workstation, a gaming rig, or a general-purpose desktop, the GA-H110M-M.2 DDR4 provides the perfect foundation.
One of the standout features of the GA-H110M-M.2 DDR4 is its support for DDR4 memory, allowing up to 32GB across two DIMM slots. This ensures smooth multitasking, faster application load times, and overall system responsiveness. Users can enjoy a significant performance boost compared to older DDR3 systems, making it ideal for productivity software, light gaming, and media applications.
The motherboard also comes equipped with a dedicated M.2 slot, supporting high-speed NVMe SSDs. This feature dramatically reduces boot times, improves data transfer rates, and enhances overall system performance. Coupled with traditional SATA storage support, users have flexible options for storage expansion, whether they prefer ultra-fast SSDs or high-capacity HDDs.
Connectivity and expansion options on the GA-H110M-M.2 DDR4 is versatile. It features multiple USB 3.0 and USB 2.0 ports, HDMI, DVI-D, and VGA outputs for diverse display setups, and PCIe x16 and PCIe x1 slots for graphics cards, network cards, or other expansion cards. Gigabyte’s renowned Ultra Durable design ensures long-term stability, efficient thermal performance, and protection against humidity, electrostatic discharge, and power surges, providing peace of mind for users in Bangladesh’s varied climates.
The motherboard’s BIOS is user-friendly, giving both beginners and experienced users simple access to system settings, overclocking options, and hardware monitoring. Integrated audio and network solutions provide clear sound and stable internet connectivity, supporting both work-from-home setups and home entertainment needs.
Available now at Islam Computers Tangail, the Gigabyte GA-H110M-M.2 DDR4 is the perfect choice for anyone looking to build or upgrade a reliable desktop PC. With its modern features, robust design, and easy expandability, it ensures your system stays fast, efficient, and future-ready. Experience the balance of performance and affordability with this exceptional motherboard from Gigabyte.
