| Basic Information | |
| Supported CPU | Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU |
| Chipset | Intel H310 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Connectivity | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 1.4 version and HDCP 2.2. |
| Memory | |
| Maximum Memory | 32 GB |
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | Dual-channel memory architecture |
| Slots | 2 x DDR4 DIMM |
| Connector & Ports | |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |

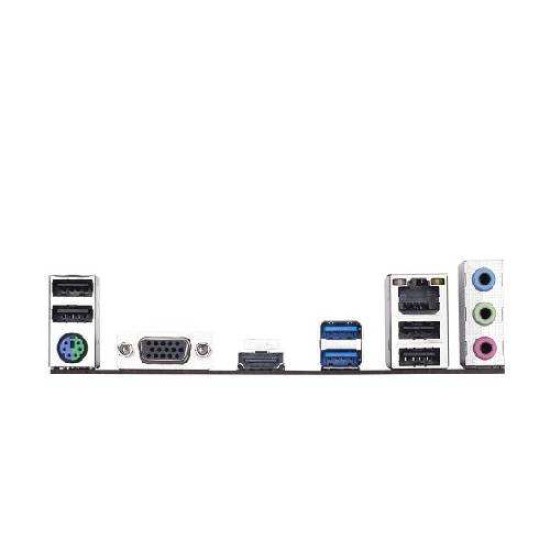

| USB (s) | 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Other Features | |
| Other Features | Support for APP Center @BIOS AutoGreen Cloud Station EasyTune Fast Bootv Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install |
| Warranty Information | |
| Warranty | 03 Years |

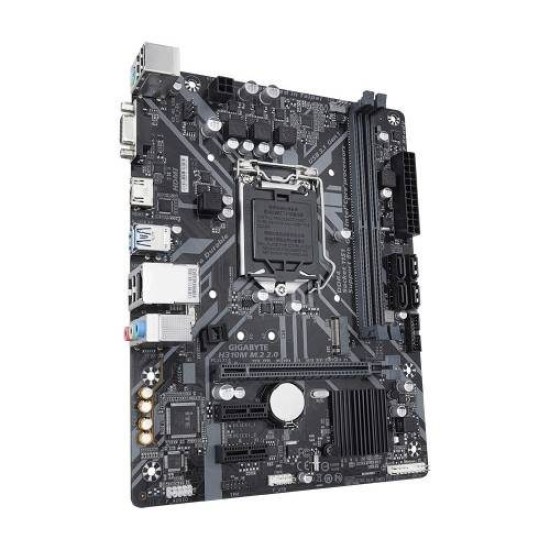

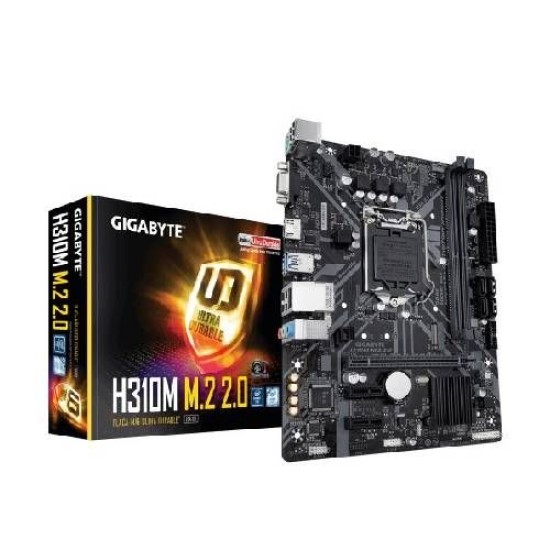

The Gigabyte H310M M.2 9th Gen Micro ATX Motherboard is a reliable and efficient choice for building a smooth and responsive computer system, especially for everyday computing, office work, light gaming, and media use. Designed with Intel’s H310 Express chipset, this motherboard supports 9th and 8th Generation Intel Core Processors, including Core i9, i7, i5, i3, Pentium, and Celeron CPUs on the LGA1151 socket. Its dual-channel architecture and two DDR4 memory slots with support up to 32GB ensure stable and efficient multitasking performance. This board includes 1 PCIe x16 slot and 2 PCIe x1 slots, giving users space for graphics cards and additional expansion cards. For storage, it offers 1 M.2 slot supporting SATA & PCIe x2 SSDs along with 4 SATA 6Gb/s connectors, allowing fast boot times and quick file transfers. The integrated Intel HD Graphics support allows connection through HDMI with up to 4K resolution @30Hz and D-Sub up to 1920x1200, making it useful for both high-definition displays and basic monitors. Connectivity is well-rounded with USB 3.1 Gen 1 and USB 2.0 ports, providing flexibility for modern peripherals. The onboard Realtek GbE LAN ensures stable network performance, while the Realtek ALC887 audio chipset offers clear sound for everyday entertainment. Additional internal headers including USB, front panel audio, and fan connectors aid in tidy system building. With support for Gigabyte’s software utilities like APP Center, EasyTune, Q-Flash, and Smart Backup, customization and maintenance become easy. The sturdy Micro-ATX form factor with 3-year warranty makes it a dependable option for budget-friendly PC builds.
Intel Processor Support: Works seamlessly with 9th & 8th Gen Intel Core, Pentium, and Celeron processors.
High-Speed Storage Performance: Equipped with M.2 slot supporting SATA & PCIe x2 SSDs for faster load speeds.
Efficient Memory Support: Dual-channel DDR4 design supporting up to 32GB for smooth multitasking.
4K Display Output: HDMI port supports 4096×2160@30Hz, suitable for high-resolution displays.
Reliable Networking: Realtek GbE LAN ensures stable, fast wired internet connectivity.
Durable & Compact Build: Micro-ATX board built for long-lasting performance with a 3-year warranty.
