| Additional Info | |
| Feature | Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in the APP Center may differ by motherboard model. Supported functions of each application may also differ depending on the motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Smart TimeLock Smart Recovery 2 Support for ON/OFF Charge |
| Basic Information | |
| Supported CPU | Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package L3 cache varies with CPU |
| Chipset | Intel H81 Express Chipset |
| BIOS | 1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17cm |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| General | |
| Brand | Gigabyte |
| Model | GA-H81M-H |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots |
| Memory | |
| Maximum Memory | 16 GB |
| Supported Memory | Dual-channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Memory Type | DDR3 |
| Slots | 2 x 1.5V DIMM sockets |
| Connector & Ports | |
| D-Sub (s) | 1 x D-Sub |
| HDMI | 1 x HDMI |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) 2 x SATA 3Gb/s connectors (SATA2 2/3) |
| USB (s) | Chipset: 2 x USB 3.0/2.0 ports on the back panel 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Graphics | |
| Graphics | Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz * Support for HDMI 1.4a version. |
| Max Shared Memory | 1GB |
| Warranty Information | |
| Warranty | 3 Years |

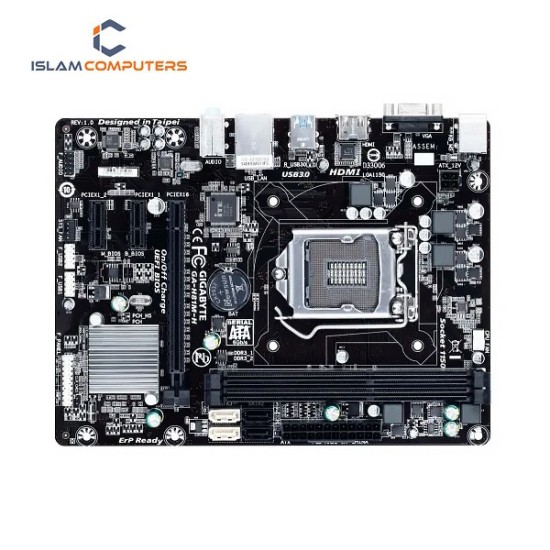

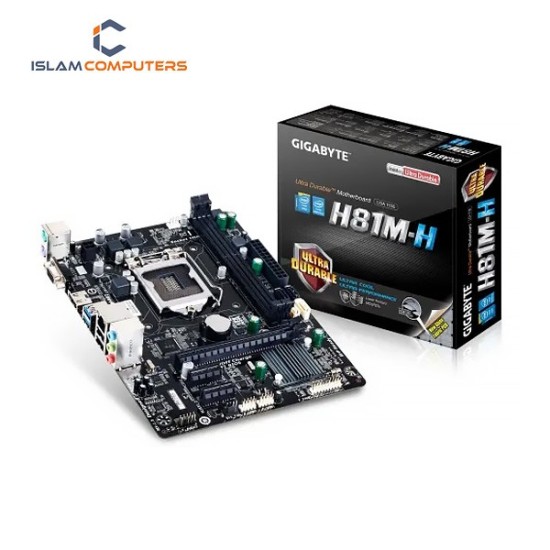

The GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard is a reliable and budget-friendly solution designed for users who want stable performance with Intel 4th Generation processors. Ideal for home, office, and entry-level business PCs, this motherboard combines durability, essential features, and trusted GIGABYTE engineering in a compact Micro ATX form factor. Available at Islam Computers Tangail, it is a practical choice for building or upgrading a dependable desktop system.
Powered by the Intel H81 chipset, the GA-H81M-H supports Intel 4th Gen Core i7, i5, i3, Pentium, and Celeron processors using the LGA 1150 socket. It ensures smooth everyday computing, whether you’re working with documents, browsing the internet, or running basic multimedia applications. The motherboard supports dual-channel DDR3 memory, allowing up to 16GB RAM, which helps maintain responsive multitasking and system stability.

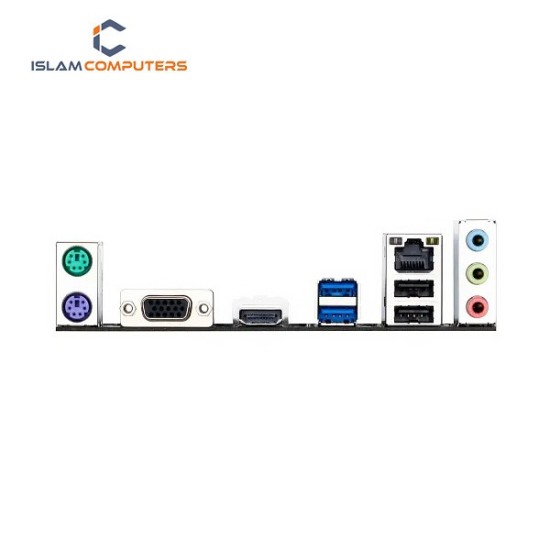

For display output, the GIGABYTE GA-H81M-H includes HDMI, DVI-D, and VGA ports, offering flexible connectivity with modern and legacy monitors. This makes it suitable for offices or homes where different display types are used. Expansion options include a PCI Express x16 slot for a dedicated graphics card and PCIe x1 slots for additional expansion cards, ensuring adaptability for future upgrades.
Storage connectivity is handled through SATA ports, supporting both HDDs and SSDs for faster boot times and reliable data storage. With USB 3.0 and USB 2.0 ports, users benefit from quick data transfers and easy peripheral connectivity. The onboard Realtek audio and LAN solutions deliver clear sound and stable wired network performance for everyday needs.
Built with GIGABYTE Ultra Durable technology, the GA-H81M-H features high-quality components such as solid capacitors and enhanced PCB design, ensuring long-term reliability and protection against humidity and power fluctuations. Its compact Micro ATX size makes it perfect for smaller cases without sacrificing essential functionality.
Overall, the GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard is an excellent choice for users seeking a cost-effective, durable, and well-balanced motherboard. Purchase from Islam Computers Tangail to ensure genuine products, trusted service, and dependable performance for your PC build.
