| External Features | |
| Expansion Slots | CPU Expansion Slot: 1 × PCI Express x16 slot, supporting PCIe 4.0 at x16 speed Chipset Expansion Slot: 1 × PCI Express x1 slot, supporting PCIe 3.0 at x1 speed |
| Memory | |
| Maximum Memory | supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | Memory Support: 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s Architecture: Dual-channel memory ECC Support: Supports ECC Un-buffered DIMM 1Rx8/2Rx8 modules (operates in non-ECC mode) Non-ECC Support: Supports non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 modules Additional Features: Compatible with Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| Slots | 2 x DIMM sockets |
| Connector & Ports | |
| HDMI | 1 x HDMI port |

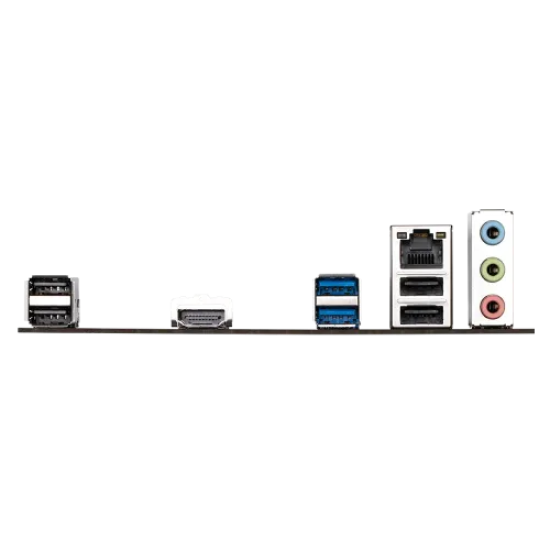

| Internal I/O Ports | 1 × 24-pin ATX main power connector 1 × 8-pin ATX 12V power connector 1 × CPU fan header 1 × System fan header 1 × M.2 Socket 3 connector 2 × SATA 6Gb/s connectors 1 × Front panel header 1 × Front panel audio header 1 × USB 3.2 Gen 1 header 1 × USB 2.0/1.1 header 1 × Clear CMOS jumper Back Panel Connectors 1 × HDMI port 2 × USB 3.2 Gen 1 ports 4 × USB 2.0/1.1 ports 1 × RJ-45 LAN port 3 × Audio jacks |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Basic Information | |
| Supported CPU | Socket: LGA1700 – Compatible with 14th, 13th, and 12th Generation Intel® Core, Pentium Gold, and Celeron processors. L3 Cache: Depends on the installed CPU (see the “CPU Support List” for detailed information). |
| Chipset | Intel H610 Express Chipset |
| BIOS | BIOS: 1 × 128 Mbit flash memory, featuring licensed AMI UEFI BIOS Standards Supported: PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Graphics | Integrated Graphics Processor (Intel HD Graphics) Support: 1 × HDMI port, supporting up to 4096 × 2160 @ 60 Hz resolution Compatible with HDMI 2.1 and HDCP 2.3 Supports native HDMI 2.1 TMDS-compatible ports Note: Graphics capabilities may vary depending on the installed CPU. |
| Audio | Audio: Realtek Audio CODEC with High Definition Audio Channels: 2/4/5.1/7.1-channel support Note: Audio jack functionality can be customized using the audio software. To enable 7.1-channel audio, configure settings through the audio software. Digital Output: Supports S/PDIF Out |
| Warranty Information | |
| Warranty | 3 Years Warranty |

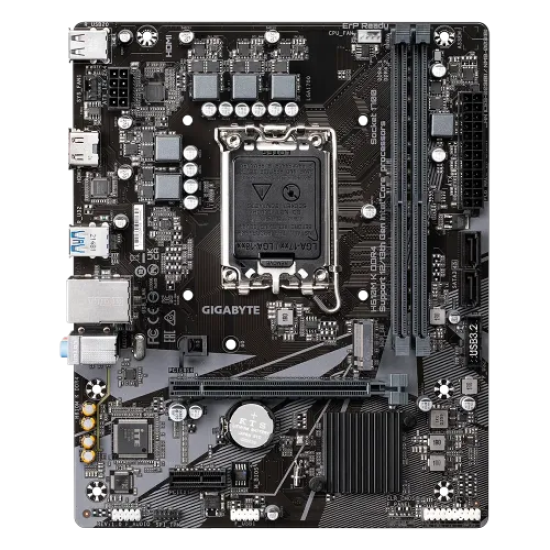

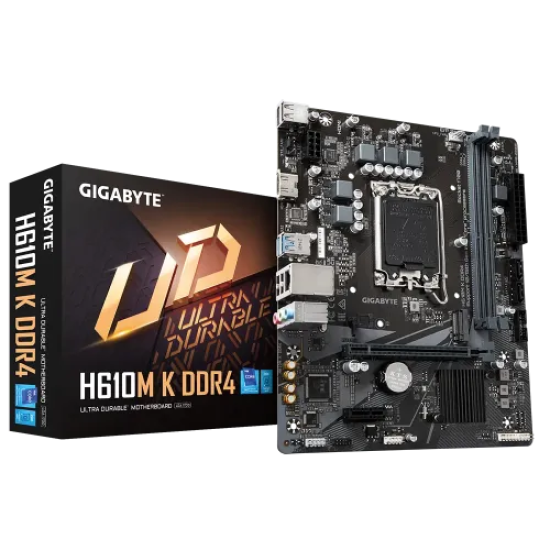

The GIGABYTE H610M K DDR4 Micro ATX Motherboard is a compact and dependable choice for users who want a stable and efficient platform for everyday computing and productivity. Built with the Intel H610 chipset and featuring the LGA1700 socket, it supports 14th, 13th, and 12th Generation Intel processors, including Intel Core, Pentium, and Celeron CPUs.
This motherboard supports DDR4 memory up to 64GB, delivering reliable performance for multitasking, office work, and general applications. With optimized memory support up to 3200MHz, users can enjoy smooth system responsiveness and improved efficiency.
For display output, the GIGABYTE H610M K DDR4 includes an HDMI 2.1 port, capable of supporting resolutions up to 4K, making it suitable for high-definition monitors and multimedia setups.
In terms of connectivity, the motherboard is equipped with a Realtek Gigabit LAN controller, providing network speeds of up to 1Gbps with backward compatibility for older networks. This ensures stable and fast internet connectivity for browsing, streaming, and online work.
Overall, the GIGABYTE H610M K DDR4 is an excellent option for building a modern desktop PC that balances performance, reliability, and value.
In Bangladesh, you can purchase the original GIGABYTE H610M K DDR4 Micro ATX Motherboard from Islam Computers. We offer a wide selection of the latest GIGABYTE motherboards for your desktop PC needs.
Order online or visit your nearest Islam Computers showroom to get this motherboard at the best price. The GIGABYTE H610M K DDR4 Motherboard comes with a 3-year warranty, ensuring long-term reliability and peace of mind.
The latest price of the GIGABYTE H610M K DDR4 Motherboard in Bangladesh is 10,500৳. Buy now from Islam Computers to enjoy genuine products, competitive pricing, and trusted service.
