| Memory | |
| Maximum Memory | Up to 64 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | Memory Support: 2 × DDR4 DIMM slots, up to 64GB, 3200/3000/2933/2666/2400/2133 MT/s, dual-channel Compatibility: Supports ECC (non-ECC mode), non-ECC DIMMs, and XMP memory modules |
| Type | DDR4 |
| Slots | 2 x DDR DIMM sockets |
| Connector & Ports | |
| HDMI | 1 x HDMI 2.1 port |
| Internal I/O Ports | Internal Connectors: 24-pin ATX main, 8-pin ATX 12V CPU fan ×1, System fan ×2 M.2 Socket 3, SATA 6Gb/s ×4 RGB LED header, Front panel header Front panel audio, Speaker USB 3.2 Gen 1 ×1, USB 2.0 ×2 TPM header (GC-TPM2.0 only) Serial port, Clear CMOS jumper, Chassis intrusion Back Panel: PS/2, D-Sub, HDMI USB 3.2 Gen 1 ×2, USB 2.0 ×4 RJ-45, Audio jacks ×3 |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| USB (s) | Chipset USB Support: 4 × USB 3.2 Gen 1 ports (2 on back panel, 2 via internal headers) 4 × USB 2.0/1.1 ports on the back panel Chipset + USB 2.0 Hub: 4 × USB 2.0/1.1 ports via internal headers |
| Basic Information | |
| Supported CPU | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Chipset | Intel H610 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.3cm x 19.3cm |
| Graphics | Integrated Graphics Processor – Intel® HD Graphics Support: 1 × D-Sub port, supporting up to 1920 × 1200 @ 60 Hz resolution 1 × HDMI port, supporting up to 4096 × 2160 @ 60 Hz resolution HDMI 2.1 and HDCP 2.3 compatible Supports native HDMI 2.1 TMDS-compatible ports Note: Graphics performance may vary depending on the installed CPU. |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Other Features | |
| Other Features | APP Center Support Available apps and features may vary by motherboard model. Includes: @BIOS EasyTune Smart Backup System Information Viewer Q-Flash |
| Warranty Information | |
| Warranty | 3 Years Warranty |

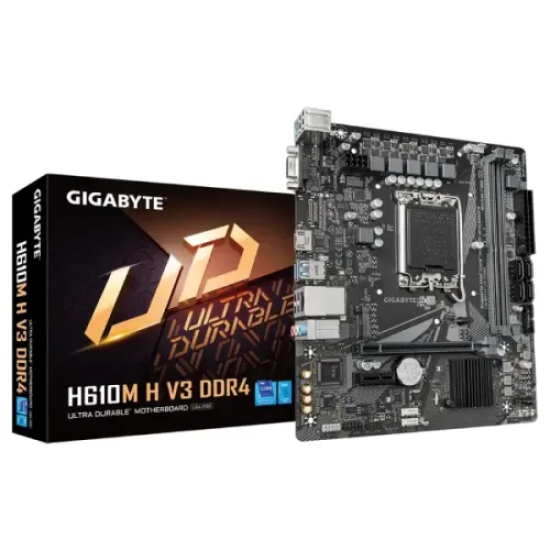

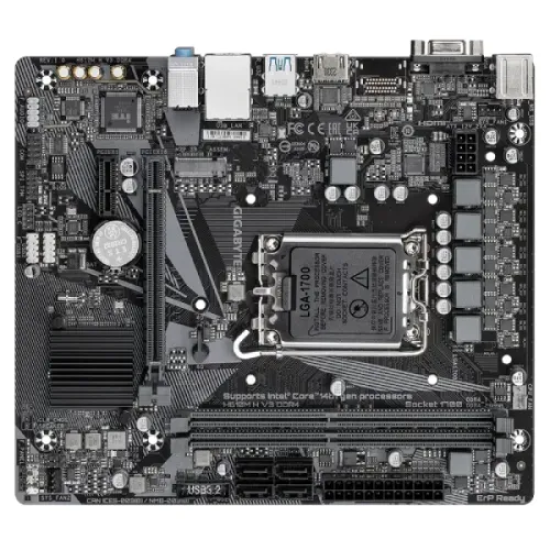

The GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard is engineered to provide outstanding performance and reliability for a wide range of computing tasks. With support for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket, it ensures compatibility with the latest CPUs.
This motherboard features a 4+1+1 Hybrid Digital VRM design for stable and efficient power delivery to the processor. It supports dual-channel non-ECC unbuffered DDR4 memory across two DIMM slots, allowing up to 64GB RAM, making it ideal for multitasking and demanding applications.
For expansion and storage, it includes a PCIe 4.0 x16 slot for high-performance graphics cards and a PCIe 3.0 x4 M.2 slot for NVMe SSDs, ensuring faster storage speeds. Connectivity options include Realtek GbE LAN for reliable internet connections and multiple display outputs such as HDMI, DVI-D, and D-Sub ports.
Audio performance is enhanced with high-quality audio capacitors and an audio noise guard for immersive sound. The motherboard is built for durability, featuring anti-sulfur resistors and solid capacitors for long-lasting performance. Smart Fan 6 technology ensures efficient cooling even under heavy workloads, keeping your system stable and quiet.
Whether building a new PC or upgrading an existing system, the GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard offers a perfect combination of performance, reliability, and advanced features to meet your computing needs.
In Bangladesh, you can get the original GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard from Islam Computers. We offer a wide range of the latest GIGABYTE motherboards for your desktop PC.
Order online or visit your nearest Islam Computers showroom to get this motherboard at the best price. The GIGABYTE H610M H V3 DDR4 Motherboard comes with a 3-year warranty for peace of mind.
The latest price of the GIGABYTE H610M H V3 DDR4 Motherboard in Bangladesh is 11,200৳. Buy now from Islam Computers to enjoy genuine products, competitive pricing, and trusted service.
