- Stock: In Stock
- Brand: GIGABYTE
- Model: H410M H
Key Features
- Model: H410M H
- Intel Socket LGA1200 for 10th Gen Processors
- 8-Channel HD Audio
- Smart Fan 5 features
| General | |
| Brand | Gigabyte |
| Model | H410M H |
| Technical Specifications | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
| Basic Information | |
| Supported CPU | Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package L3 cache varies with CPU |
| Chipset | Intel H410 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots |
| Features | |
| Others | Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Memory | |
| Maximum Memory | 64 GB |
| Supported Memory | Intel® Core™ i9/i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/ i3/ Pentium /Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules |
| Type | Dual-channel architecture |
| Slots | 2 x DDR4 DIMM |
| Connector & Ports | |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| HDMI | 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors |
| USB (s) | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Others | |
| Bundled Software | Support for Windows 10 64-bit |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz |
| Max Shared Memory | 512MB |
| Ports & Slots | |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
| Warranty Information | |
| Warranty | 03 Years |

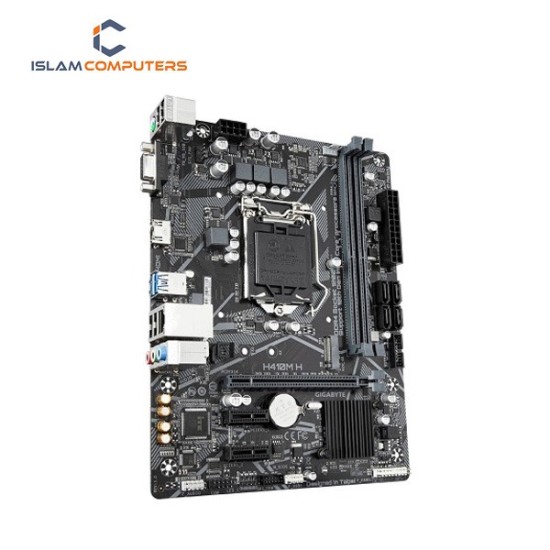

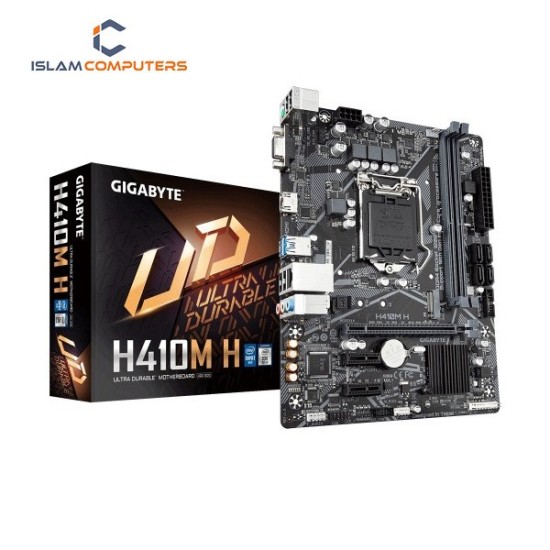

Gigabyte H410M H 10th Gen Micro ATX Motherboard
The Gigabyte H410M H 10th Gen Micro ATX Motherboard is a reliable and cost-effective solution designed to support Intel 10th Generation Core processors, making it an excellent choice for everyday computing, office work, and home PC builds. Available at Islam Computers, Tangail, this motherboard delivers stable performance, essential connectivity, and Gigabyte’s renowned durability in a compact Micro-ATX form factor.
Built on the Intel H410 chipset, the Gigabyte H410M H supports Intel Core i9, i7, i5, i3, Pentium Gold, and Celeron processors for the LGA1200 socket. It features dual DDR4 memory slots, supporting up to 64GB of DDR4 RAM, ensuring smooth multitasking and responsive system performance for daily workloads, browsing, multimedia, and office applications.
For storage, the motherboard includes four SATA 6Gb/s ports, allowing users to connect multiple HDDs or SSDs for fast data access and ample storage capacity. While it focuses on essential functionality, the H410M H delivers dependable performance for budget-friendly systems without unnecessary complexity.

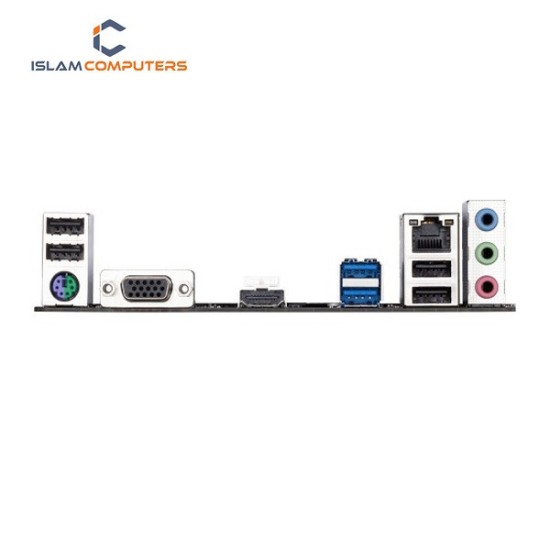

The motherboard offers a range of display output options, including HDMI and D-Sub (VGA), making it compatible with both modern and legacy monitors. This flexibility is ideal for office environments and users upgrading older systems. Integrated Intel HD Graphics support ensures clear visuals for everyday tasks without requiring a dedicated graphics card.
In terms of connectivity, the Gigabyte H410M H comes equipped with USB 3.2 Gen 1 and USB 2.0 ports, ensuring fast and reliable connections for peripherals such as keyboards, mice, printers, and external storage devices. The Realtek Gigabit LAN provides stable and high-speed wired internet connectivity, while the Realtek HD Audio codec delivers clear and immersive sound quality for multimedia and online communication.
Gigabyte’s Ultra Durable design enhances long-term reliability with high-quality components, solid capacitors, and improved power delivery. Advanced BIOS features, including Smart Fan 5, allow users to manage cooling efficiently and maintain system stability even during extended use.
Overall, the Gigabyte H410M H 10th Gen Micro ATX Motherboard is a smart choice for users seeking a dependable, affordable, and efficient motherboard. Ideal for home, office, and entry-level PC builds, it offers excellent value and trusted Gigabyte quality, now available at Islam Computers, Tangail.
