| Expansion Slots | |
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot |
| Memory Specifications | |
| Type | DDR4 |
| Memory | |
| Maximum Memory | Max. 64GB |
| Supported Memory | 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. |
| Slots | 2 x DIMM |
| Connector & Ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers |
| HDMI | 1x HDMI |

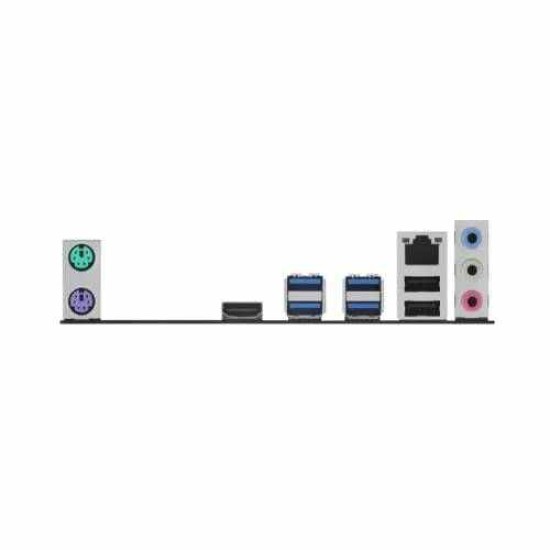

| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Others | |
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM - EZ updateV ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOSV ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | |
| Other Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| Basic Information | |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports up to Intel 65W CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H470 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm ) |
| Graphics | Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. |
| Warranty Information | |
| Warranty | 3 years |

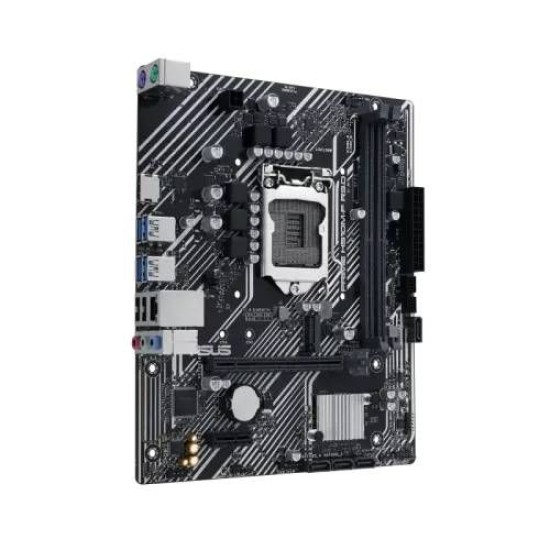

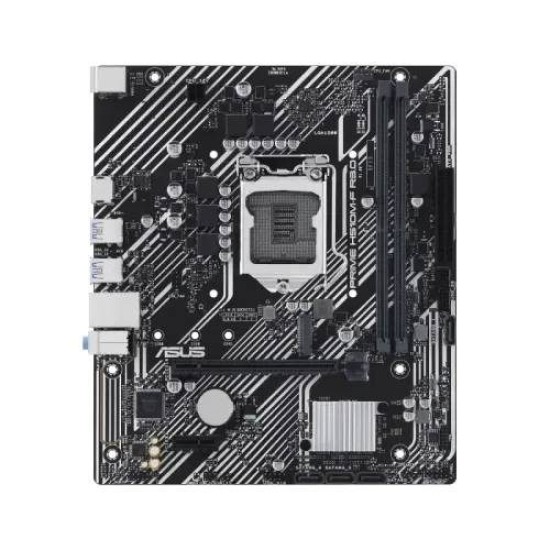

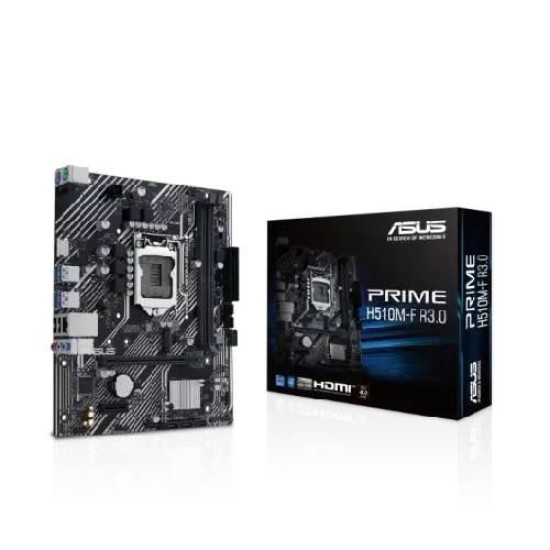

The ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard is designed to deliver reliable performance, stable power delivery, and essential features for modern home and office computing. Built on the Intel H470 chipset, this motherboard supports 11th and 10th Gen Intel Core, Pentium Gold, and Celeron processors, offering flexibility for both productivity and everyday tasks. With support for Intel Turbo Boost and up to 65W processors, it provides efficient performance without compromising stability. Equipped with dual DDR4 DIMM slots, the motherboard supports up to 64GB of memory, enabling smooth multitasking and enhanced system responsiveness. Memory speeds vary based on processor generation, with 11th Gen CPUs supporting higher frequencies for improved overall performance. Storage is versatile, thanks to one M.2 slot (PCIe 3.0 x4 & SATA) and four SATA 6Gb/s ports, allowing users to combine high-speed NVMe SSDs with traditional storage drives. Connectivity is simple and effective, featuring USB 5Gbps and USB 2.0 ports, Realtek Gigabit Ethernet, and HDMI support. When paired with an 11th Gen Intel CPU, the HDMI port can output 4K at 60Hz, making the motherboard suitable for crisp visuals and productivity-focused work. The audio design includes Realtek 7.1-channel HD audio with shielding and dedicated PCB layers for clearer sound. The board also includes ASUS 5X Protection III, ensuring long-term durability with safeguards such as overvoltage protection, reinforced PCIe slots, and stainless-steel back I/O. Additional ASUS features like Q-LED Core, Q-DIMM, and Armoury Crate software make system building and customization easier. Compact, efficient, and dependable, the ASUS PRIME H510M-F R3.0 is an ideal foundation for users seeking a balanced, long-lasting Micro-ATX motherboard for everyday computing.
