| General | |
| Brand | GIGABYTE |
| Model | B760M H DDR4 |
| Basic Information | |
| Supported CPU | LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
| Chipset | Intel B760 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, open the audio software and access the audio settings. Support for S/PDIF Out |
| Expansion Slots | |
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage | |
| Storage Support | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
| Memory | |
| Maximum Memory | up to 64GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Memory Type | DDR4 |
| Slots | 2 |
| Connector & Ports | |
| Audio | 3 x audio jacks |
| D-Sub (s) | 1x D-Sub |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Others | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for the HDMI 2.0 version and HDCP 2.3. |
| Additional Info | |
| Specialty | Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
| Warranty Information | |
| Warranty | 3-Years |

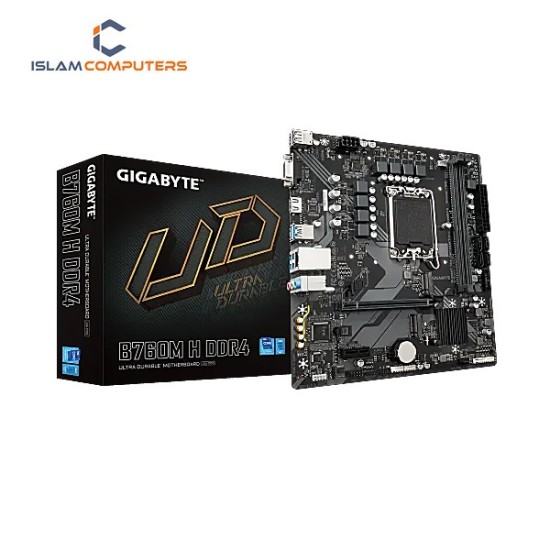

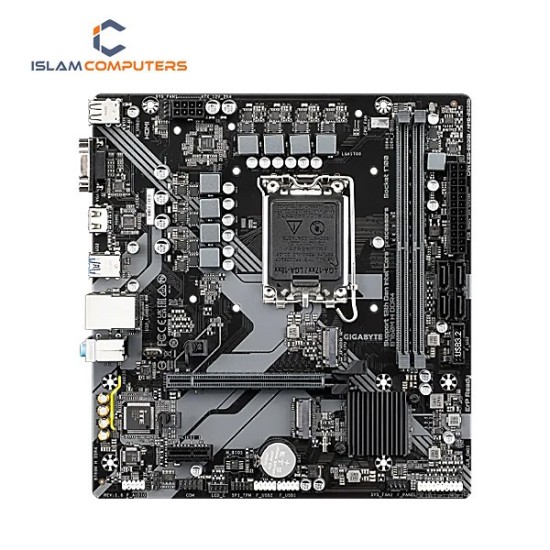

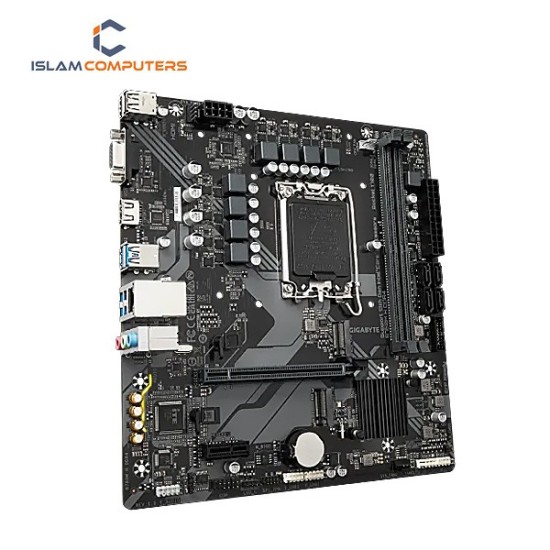

The GIGABYTE B760M H DDR4 mATX Motherboard is a powerful and reliable foundation for building a modern Intel-based PC. Designed to support the latest 12th and 13th Gen Intel Core processors, this motherboard delivers exceptional performance, stability, and efficiency for gamers, creators, and everyday users alike. Available at Islam Computers, Tangail, Bangladesh, it offers great value with premium features packed into a compact micro-ATX form factor.
Built with the Intel B760 chipset, the motherboard supports DDR4 memory, allowing users to enjoy high-speed performance while keeping costs affordable. With support for up to 64GB of RAM, multitasking becomes smooth and efficient, whether you're gaming, editing videos, or running demanding applications.
The GIGABYTE B760M H comes equipped with PCIe 4.0 support, ensuring faster data transfer speeds for modern GPUs and NVMe SSDs. This means quicker load times, better gaming performance, and improved system responsiveness. Additionally, the board includes multiple storage options, including M.2 slots and SATA ports, giving you flexibility in building your storage setup.

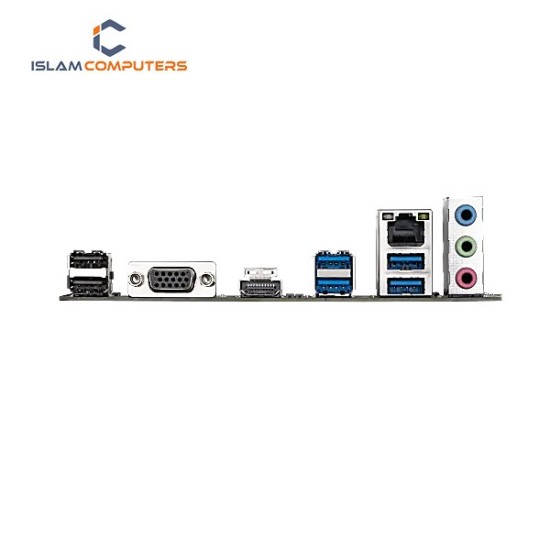

Connectivity is another strong point, with USB 3.2 ports providing fast data transfer, along with HDMI and DisplayPort outputs for high-quality visuals. The motherboard also features high-quality audio capacitors for an immersive sound experience.
Durability is ensured with GIGABYTE’s Ultra Durable technology, which includes high-quality components and advanced thermal design to keep your system cool and stable during heavy workloads. The Smart Fan technology allows users to control cooling efficiently.
Whether you're building a budget gaming PC or a productivity workstation, the GIGABYTE B760M H DDR4 mATX Motherboard is a dependable choice that balances performance, features, and affordability.
