| General | |
| Brand | GIGABYTE |
| Model | B760M G AX DDR5 |
| Basic Information | |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel B760 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Input Devices | |

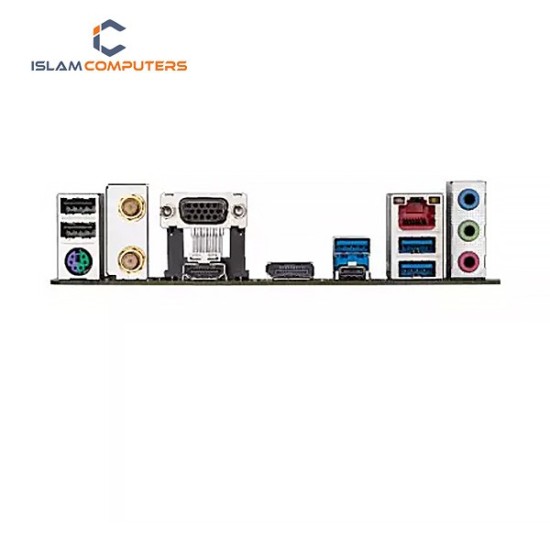

| External I/O Ports | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) / (2T2R) (Note) jkl 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks |
| Storage | |
| Storage Support | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
| Memory | |
| Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x |
| Technical Specifications | |
| Memory | 14th and 13th Generation Intel Core i9/i7 Processors: - Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold, and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB (s) | Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Others | |
| Bundled Software | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for the HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Network & Connectivity | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| WiFi | Intel Wi-Fi 6E AX211 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Bluetooth | BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard |
| Additional Info | |
| Specialty | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| Ports & Slots | |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 24.4cm x 24.4cm |
| Warranty Information | |
| Warranty | 3-Years |

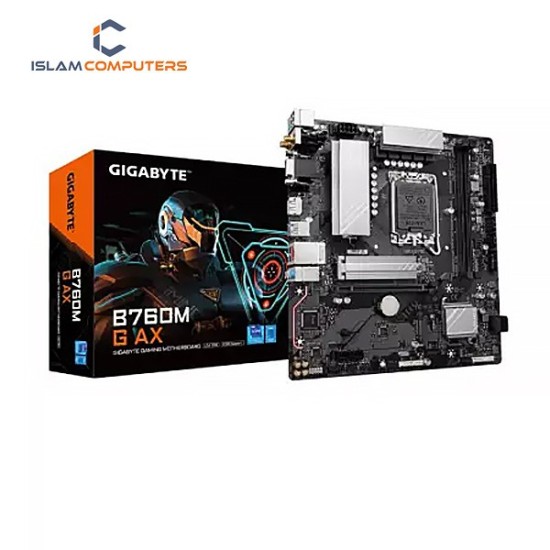

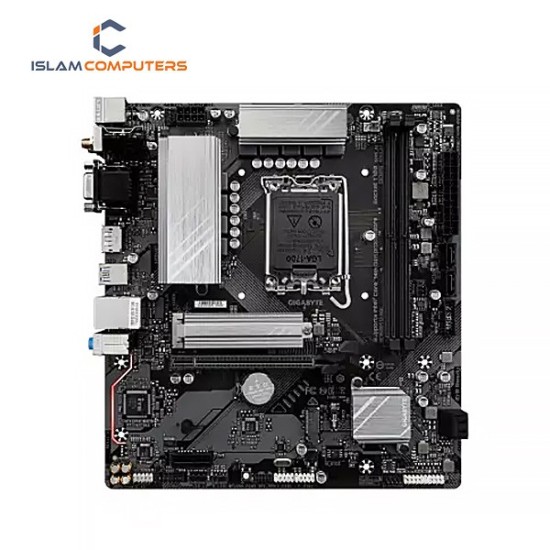

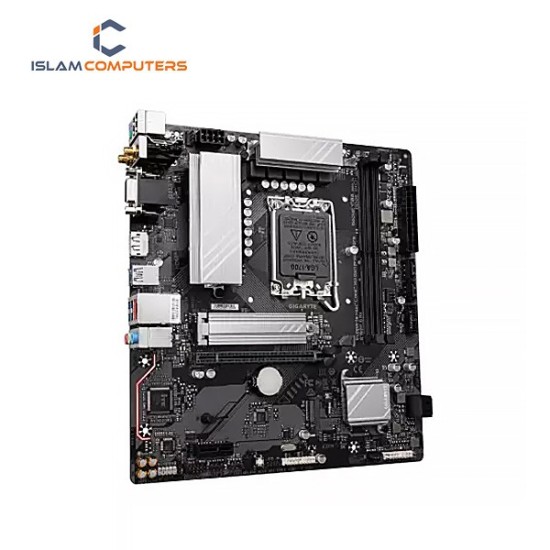

The GIGABYTE B760M G AX DDR5 Intel LGA1700 Micro ATX Motherboard is a powerful and future-ready solution designed for modern PC builders and gamers. Built to support Intel’s 12th, 13th, and 14th generation processors, this motherboard ensures exceptional performance and efficiency for both everyday computing and high-end tasks.
Equipped with DDR5 memory support, the B760M G AX delivers faster data transfer speeds, improved bandwidth, and enhanced system responsiveness compared to previous generations. This makes it ideal for gaming, content creation, and multitasking without lag or performance drops.
The motherboard features a robust power design and advanced thermal solutions, ensuring stable performance even under heavy workloads. With its high-quality components and optimized cooling system, users can enjoy long-lasting durability and consistent performance.
Connectivity is a major highlight of this motherboard. It includes built-in Wi-Fi (AX) for ultra-fast wireless internet and Bluetooth support for seamless device pairing. Multiple USB ports, PCIe slots, and storage options provide flexibility for expanding your system according to your needs.
The Micro ATX form factor makes it perfect for compact builds without compromising on performance or features. Its sleek and modern design also adds a professional look to your PC setup.
Additionally, GIGABYTE’s user-friendly BIOS and software utilities make system tuning and customization easy, even for beginners. Whether you are building a gaming PC or upgrading your current system, this motherboard offers a perfect balance of performance, connectivity, and reliability.
Available at Islam Computers, Tangail, Bangladesh, the GIGABYTE B760M G AX DDR5 motherboard is an excellent choice for users looking to build a high-performance and future-proof PC at a competitive price.
