| Additional Info | |
| Specialty | 2MP, 1/2.8 Inch CMOS image sensor, low illuminance, high image definition. Outputs max. 2MP (1920 x 1080) @25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in efficient IR illuminator, and the max. illumination distance is 30 m. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, and illegal access. 12V DC/PoE power supply. IP67 protection. |
| Image | |
| Noise Reduction | Yes |
| Dual-Stream | Yes |
| Frame Rate | Main Stream: 1920 x 1080 (1 fps - 25/30 fps), Sub stream: 704 x 576 (1 fps - 25 fps) 704 x 480 (1 fps - 30 fps) |
| Technical Info | |
| Video Type | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
| Technical Info | |
| Mic & Speaker | No |
| Scanning System | Progressive |
| General | |
| Brand | Dahua |
| Model | IPC-HDW1230T1-S5 |
| Type | IP Camera |
| Technical Specifications | |
| Protocols | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; PRA; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; multicast |
| Camera | |
| Number of Camera | 1 |
| Camera Type | Fixed |
| Day & Night | Auto (ICR)/Color/B/W |
| Night Vision | Yes |
| Night Vision Mode | Black and White |
| Resolution | 1080p (1920 x 1080); 1.3M(1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240) |
| Effective Pixels | Auto/Manual 1/3 s - 1/100000 s |
| S/N Ratio | > 56 dB |
| IR Distance | 30 Meter |
| DNR | 3D NR |
| WDR | DWDR |
| Physical Specifications | |
| Material | Inner Core: Metal + Plastic, Cover: Plastic, Decoration Ring: Plastic, Pedestal: Plastic |
| Lens | |
| Lens Adjustment Range | Pan : 0 Degree to 355 Degree, Tilt : 0 Degree to 78 Degree, Rotation: 0 Degree to 360 Degree |
| PTZ | No |
| Viewing Angle | 102 Degree (H), 54 Degree (V), 120 Degree (D) |
| Number of Lens | Single Lens (Primary) |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Lens | 2.8mm |
| Connectivity & Compatibility | |
| Interface | 1 x RJ-45 (10/100 Base-T) |
| Network & Connectivity | |
| WiFi | No |
| Power | |
| Power Consumption | Basic power consumption: 1.4W (12V DC); 2.2W (PoE) Max. power consumption (ICR + H.265+IR intensity): 3.3W (12V DC); 4.3W (PoE) |
| Power Supply | 12 VDC/PoE (802.3af) |
| Security | |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Security | Video encryption; configuration encryption; Digest; WSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Watermark | Yes |
| Weather Proof | IP67 |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 85.5 x 109mm |
| Weight | 240gm |
| Color | White |
| Warranty Information | |
| Warranty | 1-Year |

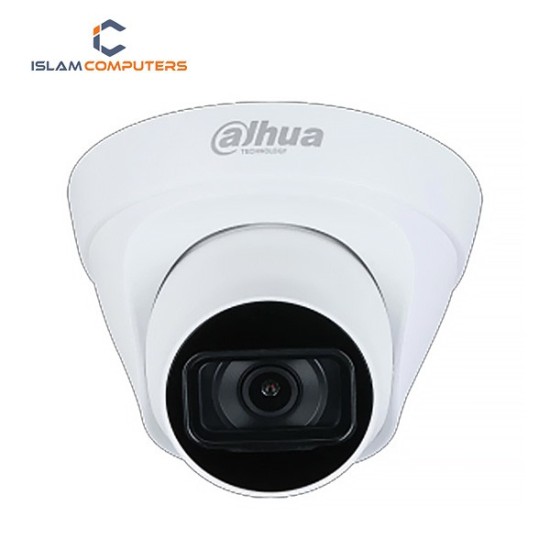

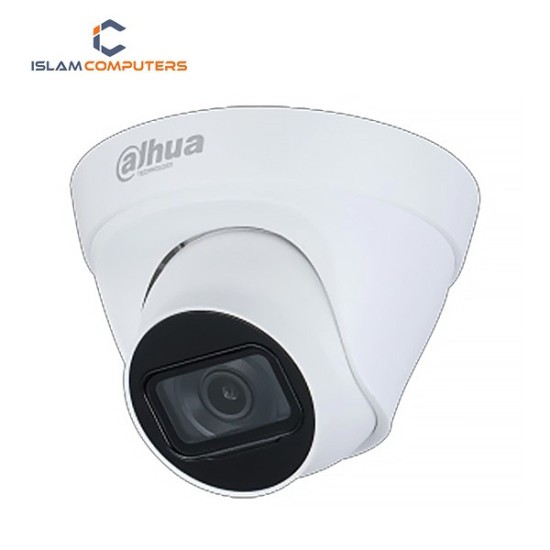

The Dahua IPC-HDW1230T1-S5 (2.8mm) 2MP Dome IP Camera is a reliable and high-performance security solution designed for homes, offices, shops, and commercial spaces. Available at Islam Computers, Tangail, Bangladesh, this Full HD IP camera delivers sharp 1080P video quality, ensuring every detail is captured with clarity and precision.
Equipped with a 1/2.8” CMOS image sensor, the camera provides clear images even in low-light environments. Its 2.8mm fixed lens offers a wide viewing angle, making it ideal for monitoring entrances, corridors, retail floors, and parking areas. With Smart IR technology, the camera delivers excellent night vision coverage up to approximately 30 meters, ensuring round-the-clock protection.
The Dahua IPC-HDW1230T1-S5 supports H.265+ compression technology, which significantly reduces bandwidth and storage consumption without compromising image quality. This makes it an efficient and cost-effective solution for long-term surveillance setups. It is compatible with NVR systems and supports remote viewing via mobile apps and desktop software, allowing you to monitor your property anytime, from anywhere.
Built with a durable dome design, this IP camera offers enhanced protection against dust and water, making it suitable for both indoor and outdoor installations. The compact and modern design blends seamlessly with any environment while maintaining strong performance.
