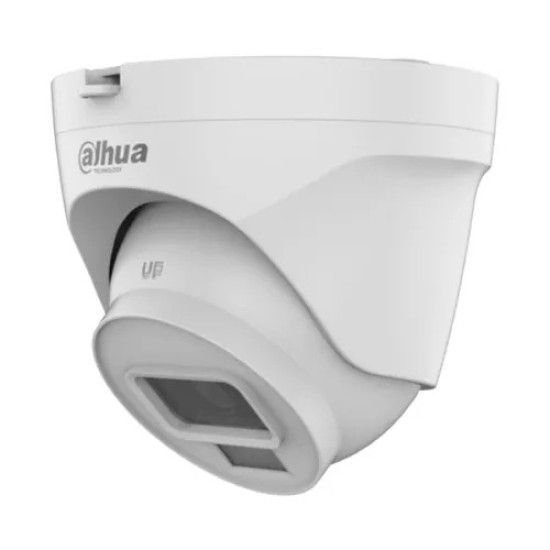

Dahua DH-IPC-HDW1230T2-S5 2MP Dome IP Camera

Dahua DH-IPC-HDW1230T2-S5 2MP Dome IP Camera
Save: -700৳
Dahua DH-IPC-HDW1230T2-S5 2MP Dome IP Camera
  • Stock: In Stock
  • Brand: Dahua
  • Model: DH-IPC-HDW1230T2-S5
3,200৳
2,500৳
Ex Tax: 3,200৳

Key Features

  • Image Sensor: 1/2.8" CMOS
  • Max. Output Resolution: 2MP (1920 × 1080) @25/30 fps.
  • Lens: 2.8mm, Aperture: F2.0, IR Distance: 30 meters
  • Features: Motion detection, video tampering, IP67, Smart Codec, Abnormality Detection
Specification
Basic Information
DIMENTION 103.2 mm × Φ109.9 mm (4.06" × Φ4.33")
Camera
Image Sensor 1/2.8" CMOS
Physical Specifications
Weight Net Weight: 0.26 kg (0.57 lb) Gross Weight: 0.42kg (0.93 lb)
Material Plastic
Power Source
Power 12V DC/PoE (802.3af)
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm;
Field of View 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal:120°
Close Focus Distance 2.8 mm: 0.5 m (1.6 ft)
Iris Type Fixed
DORI Distance 2.8 mm: 38.6 m(126.6 ft), 15.4 m(50.5 ft), 7.7 m(25.3 ft), 3.9 m(12.8 ft)
Aperture 2.8 mm: F2.0
Video
Day/Night Auto (ICR)/Color/B/W
Main Stream 1920 × 1080@1–25/30 fps
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Compression H.265; H.264; H.264B; ; H.264H MJPEG (Only supported by the sub stream)
Sub Stream 704 × 576@1–25 fps 704 × 480@1–30 fps
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream:1920 × 1080@1–25/30 fps Sub stream: 704 × 576@1–25 fps 704 × 480@1–30 fps The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability 2 streams
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
BLC Yes
Connectivity & Compatibility
Interface RJ-45 (10/100 Base-T)
Warranty Information
Warranty 1 Year
Description

Dahua DH-IPC-HDW1230T2-S5 2MP Dome IP Camera

The Dahua DH-IPC-HDW1230T2-S5 2MP Dome IP Camera is a reliable and cost-effective surveillance solution designed for homes, offices, shops, and small to medium commercial environments. Equipped with a 1/2.8" CMOS image sensor, this camera delivers Full HD 1920 × 1080 resolution, ensuring clear and detailed video for accurate monitoring and identification. With advanced H.265/H.264 video compression, the camera significantly reduces bandwidth usage and storage requirements while maintaining high image quality. Its Smart H.265+ and Smart H.264+ codecs further optimize performance, making it ideal for long-term recording applications. The fixed 2.8 mm lens provides a wide 102° horizontal field of view, allowing broader area coverage with fewer cameras. The camera excels in both day and night conditions thanks to its IR-cut filter (ICR) and built-in IR LEDs, offering up to 30 meters of infrared night vision. With ultra-low light sensitivity and 0 lux performance when IR is active, it ensures dependable surveillance even in complete darkness. Additional image enhancements such as DWDR, 3D Noise Reduction, BLC, and HLC help deliver balanced and clear images in challenging lighting environments. Built for durability, the DH-IPC-HDW1230T2-S5 features an IP67-rated weatherproof housing, making it suitable for both indoor and outdoor installations. It supports PoE (Power over Ethernet), simplifying installation by combining power and data through a single cable. The camera is fully compatible with ONVIF Profile S, allowing seamless integration with third-party NVRs and security systems. Overall, the Dahua DH-IPC-HDW1230T2-S5 combines performance, durability, and smart features into a compact dome camera, making it a dependable choice for modern security needs.

Features of Dahua DH-IPC-HDW1230T2-S5 2MP Dome IP Camera

  • Full HD Image Quality: 2MP (1920 × 1080) resolution delivers sharp, detailed surveillance footage for reliable monitoring and identification.
  • Advanced Video Compression: Supports Smart H.265+ and Smart H.264+ to reduce bandwidth and storage costs without sacrificing quality.
  • Powerful Night Vision: Built-in IR LEDs provide up to 30 m infrared illumination for clear night-time monitoring.
  • Wide-Angle Coverage: Fixed 2.8 mm lens with a 102° horizontal field of view ensures broad area surveillance.
  • Enhanced Image Processing: Features DWDR, 3D Noise Reduction, BLC, and HLC for balanced images in difficult lighting conditions.
  • Weatherproof Design: IP67-rated housing ensures reliable operation in harsh outdoor environments.
  • Easy Installation with PoE: Supports 12V DC and PoE (802.3af) for simplified wiring and setup.
