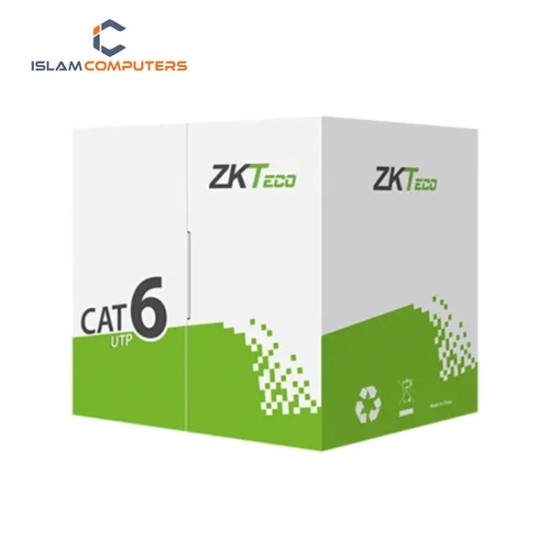

The ZKTeco XL600-C-L 305M Cat6 UTP Cable Orange is a high-performance networking cable designed to provide fast, stable, and reliable data transmission for both residential and commercial networking environments. Built according to Category 6 (Cat6) standards, this cable supports high-speed data transfer and ensures efficient connectivity for modern networking systems such as offices, CCTV networks, data centers, and home internet setups.
The ZKTeco XL600-C-L Cat6 UTP Cable features four pairs of twisted cables, which effectively minimize crosstalk and electromagnetic interference, ensuring stable signal transmission over long distances. It is constructed with 24 AWG copper-clad aluminum conductors with a diameter of 0.5 mm ± 0.015 mm, delivering excellent conductivity and long-term durability.
For enhanced insulation and protection, the cable uses high-density polyethylene (HDPE) insulation with an average thickness of 0.19 mm, offering superior elasticity, durability, and resistance against environmental stress. The cable also includes a translucent PE separator and nylon filler, providing additional structural stability and maintaining the cable’s internal structure for optimal performance.
The outer jacket is made from high-quality PVC material with an average thickness of 0.5 mm, ensuring flexibility and durability during installation and daily use. The jacket offers a tensile strength of ≥13.5 Mpa and elongation at break of ≥150%, making it resistant to wear, bending, and external pressure.
Designed for versatile environments, the ZKTeco XL600-C-L Cat6 UTP Cable operates efficiently within a temperature range of -20°C to +60°C, making it suitable for indoor and various installation conditions.
The cable also features excellent electrical performance, including conductor resistance of ≤9.38 Ω per 100 meters at 20°C, insulation resistance of ≥5000 mega ohms-km, and reliable dielectric strength with no breakdown under 1000 VDC for one minute. With an impedance of 100 Ω ±20 Ω and delay difference of ≤45 ns, the cable ensures consistent and reliable signal transmission for high-speed networking applications.
Whether you are setting up a LAN network, CCTV surveillance system, office networking infrastructure, or home internet connection, the ZKTeco XL600-C-L 305M Cat6 UTP Cable provides dependable performance and long-lasting reliability.
