| Record Management | |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Decoding | |
| Audio Compression | G.711A/G.711U/G.726 |
| Capability | • 25fps: 2-ch @ 8MP, 4-ch @ 4MP • 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-Channel† |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| External Interface | |
| Alarm In/Out | N/A |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| General | |
| Brand | Tp-Link |
| Model | VIGI NVR1004H-4P |
| Video and Audio | |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| IP Video Input | 4-Channel |
| Multi-View Display | 1/4 |
| Outgoing Bandwidth | 60 Mbps |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Playback And Backup | |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| Network | |
| Interoperability | ONVIF Profile S/T, CGI |
| Mobile Phone Access | Android, iOS |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Warranty Information | |
| Warranty | 1 Year |

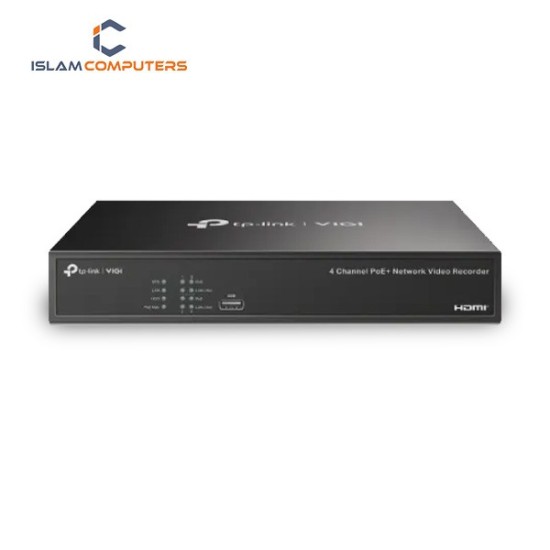

Secure your home or business with the TP-Link VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder, now available at Islam Computers, Tangail. Designed to provide seamless and reliable video surveillance, this NVR offers a combination of powerful performance, easy setup, and advanced security features, making it an ideal choice for both residential and small business applications.
The VIGI NVR1004H-4P supports up to 4 IP cameras with PoE+ (Power over Ethernet), allowing both power and data to run through a single Ethernet cable. This feature simplifies installation, reduces cable clutter, and ensures a clean, professional setup. With a plug-and-play PoE connection, users can quickly connect compatible cameras without additional power adapters, making it perfect for fast and hassle-free deployments.
Equipped with high-performance hardware, the NVR supports 4K resolution recording on each channel, delivering crisp and detailed video footage. The device uses H.265/H.264 video compression technology, optimizing storage usage without compromising video quality. This means longer retention periods for recorded footage, helping you review events whenever needed.
The VIGI NVR also offers intelligent video management features, including motion detection, real-time alerts, and remote access. Through the VIGI Security app or web client, you can monitor your cameras anytime, anywhere, from your smartphone, tablet, or PC. Live view, playback, and system settings can be managed effortlessly, giving you full control over your security setup.

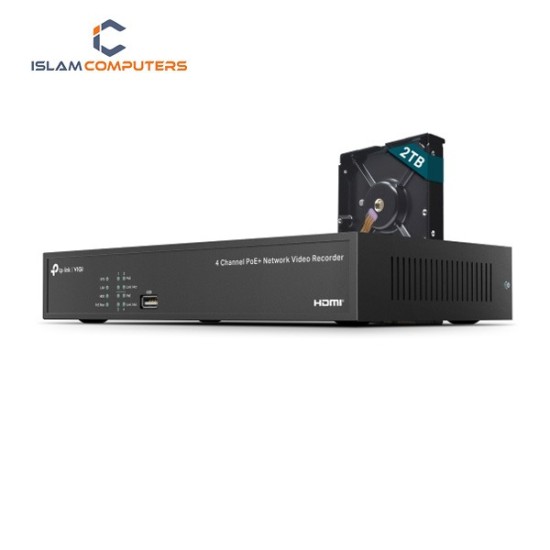

For storage, the NVR supports 1 SATA hard drive (up to 6TB), providing ample space for continuous recording. Its compact design and fanless operation ensure quiet and efficient performance, while the robust security measures keep your surveillance system protected against unauthorized access.
Whether you are securing your home, office, or small retail space, the TP-Link VIGI NVR1004H-4P offers reliable, high-quality video surveillance with easy setup and professional features. Available now at Islam Computers, Tangail, this NVR is your go-to solution for modern, smart, and efficient security.
