| General | |
| Brand | Tp-Link VIGI |
| Model | NVR1004H 4 Channel |
| Type | NVR |
| Basic Information | |
| STORAGE | Up to 10TB |
| Compatibility | |
| Smartphone | iOS, Android |
| Features | |
| Others | General Alarm: Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame, Anomaly Alarm: Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm, Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off, 4-Channel Live View and 4K HDMI Video Output, 2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability, 4-Channel Synchronous Playback, 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth, 1 SATA Interface, H.265+ Compression Technology, HDMI and VGA Simultaneous Output, Remote Monitoring |
| Main Features | |
| Video Resolution | 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Video | |
| Video Compression | H.265+/ H.265/ H.264+/ H.264 |
| Video and Audio | |
| IP Video Input | 4-Channel |
| Auxiliary Interface | |
| USB | 2 x USB 2.0 |
| Connectivity | |
| VGA | 1 Channel, Resolution: 1920 ?? 1080/60Hz, 1680?? 1050/60Hz, 1440 ?? 900/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz |
| HDMI | 1 Channel, Resolution: 3840 ??2160/30Hz, 1920 ?? 1080/60Hz, 1680?? 1050/60Hz, 1440 ?? 900/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz |
| Recording | |
| Audio Compression | G.711A/ G.711U/ G.726 |
| Dual-stream | N/A |
| Network | |
| Network Interface | 1 x RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| Network Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Wi-Fi | N/A |
| Physical Specification | |
| Color | Black |
| Power | |
| Power Consumption | 4.25 W (without disk) |
| Power Supply | DC 12V/1.5A |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 246.2 x 148.2 x 45 mm |
| Weight | 0.59 kg |
| Warranty Information | |
| Warranty | 2-Years |
Secure your home or business with the TP-Link VIGI NVR1004H 4 Channel NVR! Enjoy reliable 4-channel video recording, H.265+ compression, HDMI/VGA output, remote monitoring, and seamless compatibility with VIGI IP cameras. Buy the genuine TP-Link VIGI NVR1004H from Islam Computers, Tangail, Bangladesh.

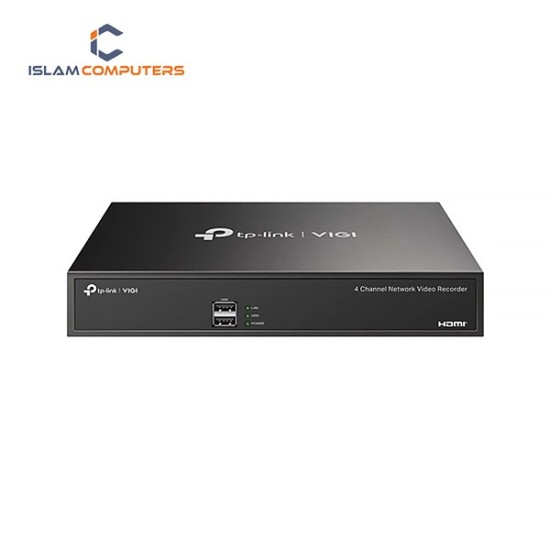

The TP-Link VIGI NVR1004H 4 Channel Network Video Recorder (NVR) is a dependable surveillance solution designed for homes, offices, retail stores, schools, warehouses, and small businesses. Built to work seamlessly with TP-Link VIGI IP cameras, this NVR offers reliable video recording, easy management, and high-quality playback, making it an excellent choice for modern security systems.
Supporting up to 4 IP camera channels, the VIGI NVR1004H enables centralized monitoring and recording from multiple locations simultaneously. Whether you need to secure your home entrance, office, shop, or warehouse, this recorder provides efficient surveillance management with stable performance.
The device supports up to 8MP video decoding, ensuring sharp and detailed recordings when paired with compatible high-resolution cameras. With advanced H.265+ video compression technology, storage usage and bandwidth consumption are significantly reduced while maintaining excellent image quality. This allows you to retain more recordings without requiring excessive hard drive space.

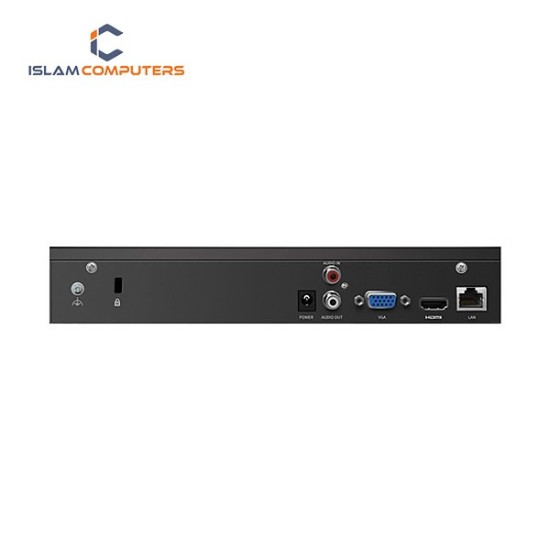

The TP-Link VIGI NVR1004H features both HDMI and VGA video outputs, allowing you to connect directly to monitors or TVs for live viewing and playback. Its intuitive user interface makes camera configuration, recording schedules, playback, and system management simple for both beginners and professional installers.
Remote access is another key advantage of the VIGI NVR1004H. Using the TP-Link VIGI mobile app or VIGI Security Manager software, users can monitor live video, review recorded footage, and manage their surveillance system from virtually anywhere with an internet connection. This ensures continuous security even when you are away from your property.
The recorder supports intelligent recording features, event-based recording, scheduled recording, and continuous recording, giving users flexible options based on their security requirements. It also offers easy backup via USB for important footage.
Designed with reliability and long-term operation in mind, the TP-Link VIGI NVR1004H is suitable for 24/7 surveillance environments. Its compact design makes installation simple while ensuring stable performance in demanding conditions.
Purchase the TP-Link VIGI NVR1004H 4 Channel NVR from Islam Computers, Tangail, Bangladesh, your trusted source for genuine TP-Link networking and surveillance products. We offer competitive prices, authentic products, expert technical support, and dependable after-sales service. Enhance your property's security with a professional surveillance recorder built for dependable performance and easy remote management.
