- Stock: In Stock
- Brand: TP-Link VIGI
- Model: InSight S655I
- SKU: IC-TPL-VIGI-S655I-5MP-1.44MM
Key Features
- Form-Factor: IR Fisheye
- Mega Pixels (MP): 5.0
- Night Vision Mode: Black and White
- Working Distance: 28 meters
| Recording | |
| Dual-stream | Yes |
| Technical Info | |
| Mic & Speaker | Both Mic and Speaker |
| Scanning System | Progressive |
| Working Distance | 28 Meter |
| Transmitter | |
| Wavelength | 850 nm |
| Features | |
| Others | Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR light, Day/Night Switch: Unified/ Scheduled/ Auto, DORI Distance: Detect: 28.8 m (94 ft), Observe:12 m (39 ft), Recognize: 5.7 m (19 ft), Identify: 2.8 m (9 ft), Installation: Ceiling Mount; Wall Mount; Pendant Mount, Display Mode: On VIGI VMS: Ceiling Mount: Fisheye, AR Dewarp, 180 Panorama, 360 Panorama, Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ. Wall Mount: Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZ. On VIGI App: Ceiling Mount: Fisheye, 180 Panorama, 360 Panorama, Fisheye+3PTZ, 4PTZ, Cylinder, AR Dewarp, Wall Mount: Fisheye, 360 Panorama Unwrap, Fisheye+3PTZ, 4PTZ, 2PTZ, AR Dewarp. IR LED: Quantity: 4, Range: 10 m, Illuminator On/Off Control: Auto/Scheduled/Always on/Always off, Bit Rate Control: CBR, VBR, Video Compression. H.264 Type: High Profile, H.264+: Main Stream Supported, H.265 Type: Main Profile, H.265+: Main Stream Supported Video Bit Rate: Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps. Image Settings: Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software. Image Enhancement: BLC/3D DNR/HLC/SmartIR. Privacy Mask: Up to 4 Masks, Audio Sampling Rate: 8 KHz, Audio Bit Rate: 64 Kbps (G.711 alaw). API: Open Network Video Interface (Profile S/T/G), Client: Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above. Built-in Microphone: Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera. Package Content: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories. Certifications: CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF. |
| General | |
| Usage | Indoor |
| Brand | TP-Link |
| Model | TP-Link VIGI InSight S655I |
| Type | IR Fisheye IP Camera |
| Technical Specifications | |
| Form Factor | IR Fisheye |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Camera | |
| Camera Type | Fixed |
| Day & Night | IR Cut Filter |
| Night Vision | Yes |
| Night Vision Mode | Black and White |
| Resolution | Main Stream: 2560x1920, 2256x1696, 2048x1536, 1280x960, Sub-Stream: 640x480, 320x240 |
| Sensor Type | 1/2.7 Inch Progressive Scan CMOS |
| Effective Pixels | 5.0 Mega Pixels |
| Electronic Shutter Speed | 1/3 to 1/10000 s |
| DNR | 3D DNR |
| WDR | 120 dB |
| Button | Reset Button |
| Number of Camera | 1 |
| Key Features | |
| Operating Temperature | -30 Degree C - 60 Degree C |
| Storage | |
| Storage Type | MicroSD |
| Storage Support | Up to 512GB |
| Image | |
| Noise Reduction | Yes |
| Frame Rate | 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Lens | |
| PTZ | No |
| Viewing Angle | Horizontal FOV: 180 Degree, Vertical FOV: 180 Degree, Diagonal FOV:180 Degree |
| Number of Lens | Single Lens (Primary) |
| Lens Mount | M12*P0.5 |
| Focal Length | .44mm |
| Lens | Fixed Focal Lens 1.44mm |
| Technical Info | |
| Audio Communication | 2-Way Audio |
| Connectivity & Compatibility | |
| Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Technical Info | |
| Video Type | Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264 |
| Network & Connectivity | |
| WiFi | No |
| Additional Info | |
| Specialty | Image Parameters Switch, OSD Setting, Audio Input, Audio Output, Audio Compression, Environment Noise Filtering, ONVIF, Smart Event: Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Abnormal Sound Detection, Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, Email Alarm, Upload Capture to FTP. IP67 Weatherproof, IK10 Vandal Proof. 5MP Super-High Definition and IR Night Vision. 360 Degree Coverage without Blind Spots. Supports Multiple Display Modes, Delta, and ePTZ. Supports Ceiling Mount / Wall Mount / Pendant Mount. Smart Detection. Smart Video Enhancement Technology. Suitable for Small Indoor Areas like Retail Shops and Offices. |
| Physical Specification | |
| Body Material | Metal |
| Power | |
| Power Consumption | 12.14W |
| Power Supply | 12V DC -/+ 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug, PoE: 802.3af/at, class 0 |
| Security | |
| Motion Detection | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Water Protection | Yes |
| Weather Proof | IP67 |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 132 x 132 x 56mm |
| Color | White |
| Warranty Information | |
| Warranty | 2-Year |

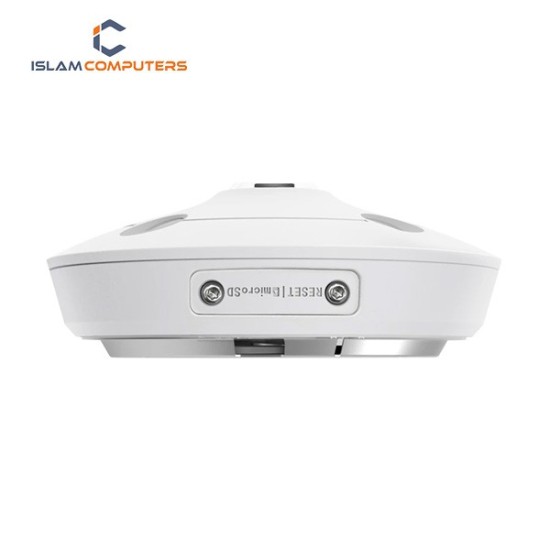

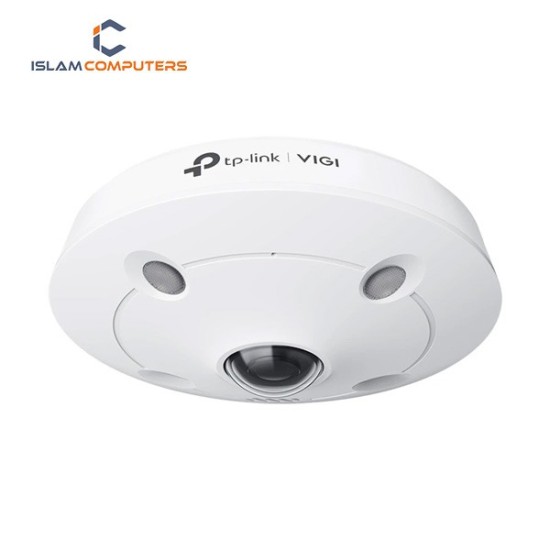

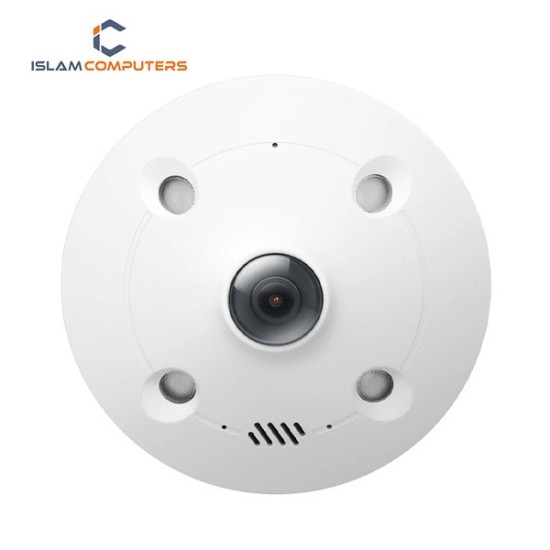

TP-Link VIGI InSight S655I (1.44mm) (5MP) IR Fisheye IP Camera
The TP-Link VIGI InSight S655I (1.44mm) 5MP IR Fisheye IP Camera is a powerful, all-in-one surveillance solution designed for wide-area indoor monitoring where full coverage matters most. Available at Islam Computers Tangail, this advanced fisheye camera delivers a complete 360° panoramic view from a single mounting point, making it ideal for retail stores, offices, showrooms, warehouses, banks, classrooms, and other open indoor environments.
Equipped with a high-resolution 5MP image sensor, the VIGI S655I captures sharp, detailed footage that allows you to clearly identify people, movements, and activities across the entire scene. The ultra-wide 1.44mm fisheye lens eliminates blind spots and reduces the need for multiple cameras, helping lower installation and maintenance costs while simplifying system management.
For reliable security around the clock, the camera features advanced infrared (IR) night vision, ensuring clear visibility even in complete darkness. Whether it’s daytime or night, the VIGI S655I maintains consistent image quality, making it a dependable choice for 24/7 surveillance. Built-in smart video enhancement technologies, including WDR and 3D DNR, help balance lighting conditions and reduce noise, resulting in clear and usable footage in challenging environments.
The TP-Link VIGI InSight S655I also supports multiple dewarping modes, allowing users to view the fisheye image in different layouts such as panoramic, split, or regional views through VIGI NVRs and software. This flexibility makes monitoring easier and more practical for security operators who need focused views without losing situational awareness.
Designed with professional installations in mind, the camera supports Power over Ethernet (PoE) for easy and clean setup using a single network cable. It integrates seamlessly with the TP-Link VIGI ecosystem, providing centralized management, remote viewing, and secure video storage options. Strong security features, including encrypted data transmission and user access control, help protect your surveillance system from unauthorized access.
With its compact design, robust performance, and intelligent features, the TP-Link VIGI InSight S655I (1.44mm) 5MP IR Fisheye IP Camera is an excellent choice for businesses looking for efficient, wide-coverage indoor security. Get dependable TP-Link surveillance quality today from Islam Computers Tangail, your trusted destination for professional networking and security solutions.
