| General | |
| Brand | TP-Link VIGI |
| Model | InSight S385 |
| Camera | |
| Day & Night | IR Cut Filter |
| Shutter Time | 1/3 to 1/10000 s |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| Lens | |
| Lens Type | Fixed Focal Lens |
| Lens Mount | M12*P 0.5 |
| Focal Length | 2.8/4 mm |
| DORI Distance | • 2.8 mm Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognize: 17 m (56 ft) Identify: 8 m (28 ft) • 4 mm Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft) |
| Aperture | F1.6 |
| Image | |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Technical Info | |
| Audio Communication | Two-Way Audio |
| Video | |
| Main Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Resolution | 3840 X 2160 |
| Sub Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Connectivity & Compatibility | |
| Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Network | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Physical Specification | |
| Body Material | Metal |
| Power | |
| Power Supply | • 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 11.5 W |
| Security | |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Weather Proof | IP67 |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm) |
| Weight | 0.525 Kg |
| Warranty Information | |
| Warranty | 1-Year |

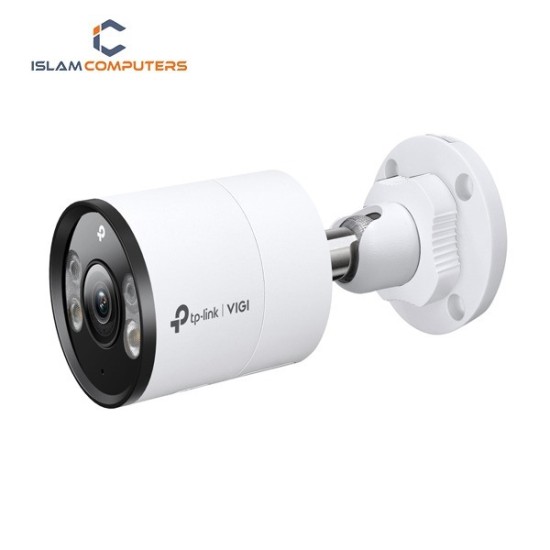

The TP-Link VIGI InSight S385 4mm 8MP Full-Color Bullet Network Camera is a professional surveillance solution designed to provide high-quality security monitoring for homes, offices, shops, warehouses, commercial buildings, and other properties. Featuring an 8MP 4K Ultra HD resolution, the camera delivers highly detailed video that helps capture important visual information with greater clarity. TP-Link specifies the S385 as an outdoor full-color bullet network camera with 24-hour full-color imaging and intelligent surveillance features.
The camera uses a 1/2.7-inch Progressive Scan CMOS sensor and a fixed 4mm lens with an F1.6 aperture. The 4mm lens provides a horizontal field of view of approximately 91.5°, making it suitable for monitoring entrances, corridors, parking areas, storefronts, and other locations where focused coverage is required.
One of its major advantages is 24-hour full-color surveillance. The S385 is designed to maintain color video in low-light conditions, while its white-light and IR illumination systems help improve visibility when ambient lighting is limited. TP-Link lists a minimum illumination of 0.005 lux and 0 lux with IR/white light.
The camera also includes intelligent security capabilities such as People & Vehicle Analytics, Human & Vehicle Classification, and Smart Detection. These features can help distinguish people and vehicles from other objects and make event searching and notifications more useful.
For improved image quality, the S385 incorporates True WDR, Smart IR, 3D DNR, and White Balance technologies. These features are designed to help balance challenging lighting conditions, reduce image noise, and maintain clearer surveillance footage.
The camera supports H.265+ video compression, which can reduce bandwidth and storage requirements while maintaining image quality. It also supports 12V DC and PoE, providing flexible installation options depending on the network infrastructure.
Built for outdoor deployment, the IP67 weatherproof design protects against dust and water, making the camera suitable for various outdoor surveillance environments.
Get the TP-Link VIGI InSight S385 4mm 8MP Full-Color Bullet Network Camera from Islam Computers, Tangail, Bangladesh, for reliable and intelligent surveillance solutions.
