| Image | |
| Day/Night Mode | Unified/ Scheduled/ Auto |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Temperature | |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| General | |
| Brand | TP-Link VIGI |
| Model | VIGI EasyCam C420 |
| Camera | |
| Day & Night | IR Cut Filter |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Electronic Shutter Speed | 1/3 to 1/10000 s |
| Minimum Illumination | 0.01 Lux; 0 Lux with IR/White light |
| WDR | DWDR |
| Audio and Video | |
| Two-Way Talk | N/A |
| Physical Specifications | |
| Material | Plastic |
| Storage | |
| Cloud Storage | Yes |
| Image | |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Lens | |
| Lens Type | Fixed Focal Lens |
| Lens Mount | M12 |
| Focal Length | 2.8/4 mm |
| DORI Distance | • 2.8 mm Detect: 154.2 ft (47 m) Observe: 62.3 ft (19 m) Recognize: 29.5 ft (9 m) Identify: 16.4 ft (5 m) • 4 mm Detect: 193.6 ft (59 m) Observe: 82 ft (25 m) Recognize: 39.4 ft (12 m) Identify: 19.7 ft (6 m) |
| Aperture | F2.0 |
| Video | |
| Main Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 1920x1080, 1280x960, 1280x720 • Note: If the image rotation is set to 90°, the frame rate only supports up to 20fps. |
| Resolution | 1920x1080 |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| Sub Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480, 704x576, 640x480, 640x360,352x288, 320x240 • Note: If the image rotation is set to 90°, the frame rate only supports up to 20fps. |
| Video Bit Rate | • Main Stream: 256 Kbps to 4 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
| Video and Audio | |
| Audio Input | Yes (Built-in Microphone) |
| Audio Output | N/A |
| Network | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Power | |
| Power Supply | PoE: 802.3af, class 0, Max. 7.1 W |
| Security | |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | Ø4.2 × 3.1 in (Ø107.9 × 79.8 mm) |
| Weight | 0.165 Kg |
| Warranty Information | |
| Warranty | 1-Year |

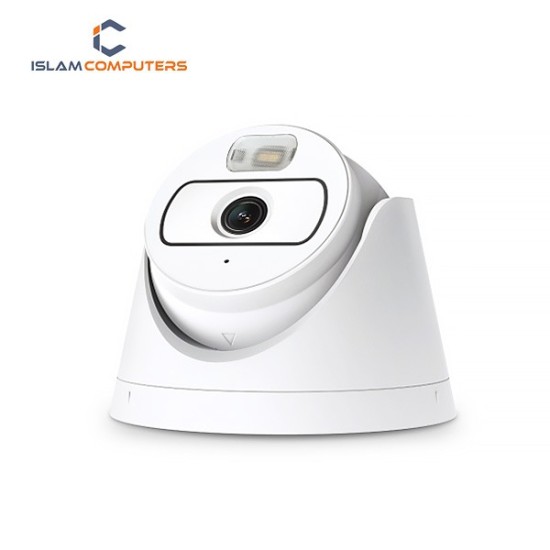

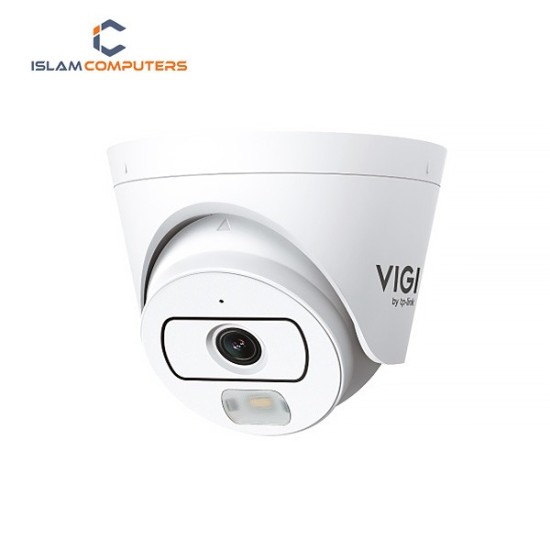

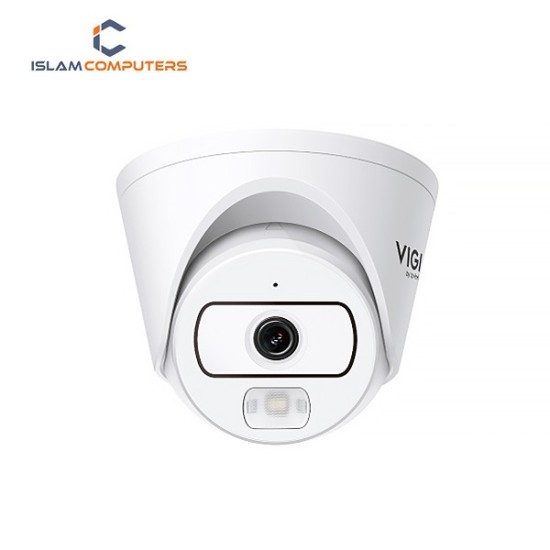

The TP-Link VIGI EasyCam C420 2MP Full-Color Turret Network Camera is an advanced surveillance solution designed to deliver reliable security monitoring for homes, offices, shops, warehouses, and commercial environments. Featuring a powerful 2MP CMOS sensor, this camera captures sharp Full HD 1080p video with exceptional clarity, ensuring every detail is visible both day and night.
One of the standout features of the VIGI EasyCam C420 is its full-color night vision technology. Unlike traditional infrared cameras that switch to black-and-white footage in low-light conditions, this camera provides vivid and colorful video even at night, allowing users to identify faces, vehicles, clothing colors, and important details more accurately. This makes it an ideal choice for 24/7 security monitoring.
The turret-style design offers a sleek and modern appearance while ensuring flexible installation on walls or ceilings. Built with durable materials, the camera is suitable for both indoor and outdoor environments. Its weather-resistant construction helps protect against rain, dust, and harsh weather conditions, ensuring long-lasting performance.
The TP-Link VIGI EasyCam C420 also supports intelligent detection features that enhance security management. Motion detection alerts help users stay informed about suspicious activity in real time. With remote viewing support, users can monitor their property anytime from smartphones, tablets, or computers using the VIGI application or compatible monitoring software.
Designed for easy integration, this network camera works efficiently with NVR systems and supports stable network connectivity for uninterrupted video transmission. The wide-angle lens captures broader coverage, reducing blind spots and improving overall surveillance efficiency.
Whether you need a dependable security camera for residential protection or professional business monitoring, the TP-Link VIGI EasyCam C420 delivers outstanding performance, excellent image quality, and reliable security features at an affordable price. Its combination of full-color imaging, smart monitoring capabilities, and robust construction makes it a perfect choice for modern surveillance needs.
Buy the original TP-Link VIGI EasyCam C420 2MP Full-Color Turret Network Camera from Islam Computers and enjoy trusted security solutions with competitive pricing and professional customer support.
