| General | |
| Brand | Tp-Link |
| Model | TL-SF1009P |
| HARDWARE FEATURES | |
| Interface | 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) AUTO Negotiation AUTO MDI/MDIX |
| Main Features | |
| Advanced Function | Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) Priority Mode Button (Ports 1–2) Isolation Mode Button (Ports 1–8) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| Network Standard | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Data Transmission Rate | 10/100 Mbps |
| MAC Address Table | 2K |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
| Gaming Features | |
| Tracking Method | Store-And-Forward |
| Power | |
| Power Supply | External Power Adapter (Output: 53.5VDC / 1.3A) Power Supply: 65 W |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| LED Indicators | Yes |
| Warranty Information | |
| Warranty | 02 Year Warranty |

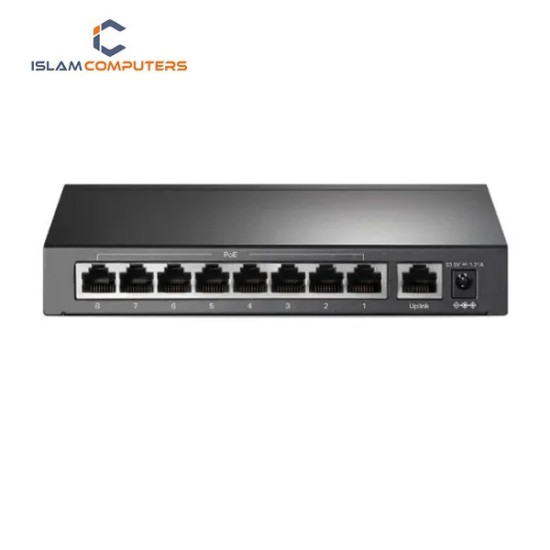

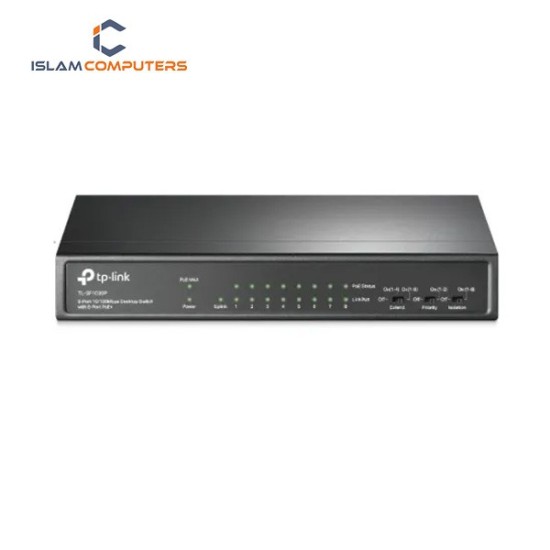

The TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ is a reliable and cost-effective networking solution designed for small offices, retail stores, IP surveillance systems, and home networks. Available at Islam Computers, Tangail, this switch combines fast Ethernet performance with Power over Ethernet (PoE+) capability, making it ideal for powering and connecting multiple devices through a single network cable.
The TL-SF1009P features 9 Fast Ethernet ports, including 8 PoE+ ports and 1 uplink port. Each PoE+ port supports IEEE 802.3af/at standards and can deliver up to 30W per port, with a total PoE power budget of 65W. This allows you to power devices such as IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices without the need for separate power adapters, reducing installation cost and cable clutter.
Designed with plug-and-play functionality, the TP-Link TL-SF1009P requires no configuration, making setup quick and hassle-free even for non-technical users. Simply connect your devices, and the switch automatically handles data transmission and power delivery. The dedicated uplink port ensures a stable and efficient connection to your router or core network, helping maintain smooth network performance.
For improved performance and reliability, the switch supports PoE Auto Recovery, which automatically detects and reboots unresponsive PoE devices such as IP cameras. This feature significantly reduces downtime and maintenance effort, especially in surveillance environments where continuous operation is critical.
The compact desktop design and fanless architecture ensure silent operation, making it suitable for noise-sensitive environments like offices, shops, or homes. Its durable metal casing enhances heat dissipation and ensures long-term reliability. Additionally, TP-Link’s advanced energy-efficient technology helps reduce power consumption while maintaining optimal performance.
With its strong PoE capability, stable data transmission, and user-friendly design, the TP-Link TL-SF1009P is an excellent choice for expanding your wired network and powering essential devices efficiently. Whether you are setting up a small business network or a security camera system, this switch delivers dependable performance at an affordable price.
Purchase the TP-Link TL-SF1009P 9-Port PoE+ Desktop Switch from Islam Computers, Tangail, and enjoy a trusted networking solution backed by TP-Link’s quality and reliability.
