| Network Performance | |
| Transmission Mode | Store and Forward |
| General | |
| Brand | Tp-Link |
| Model | LS109P |
| HARDWARE FEATURES | |
| Interface | 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports) |
| Main Features | |
| Advanced Function | Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission) Isolation Mode Button (Ports 1–8) PoE Auto Recovery Button (Ports 1–8) Compatible With IEEE 802.3af/at Compliant PDs Mac Address Auto-Learning and Auto-Aging IEEE 802.3x Flow Control Green Technology |
| Data Transmission Rate | Switching Capacity: 1.8 Gbps Packet Forwarding Rate: 1.3392 Mpps |
| MAC Address Table | 2K |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 6.7×3.9×1.1 in (171×98×27 mm) |
| LED Indicators | Power Link/Act PoE Status PoE MAX |
| Power | |
| Power Supply | Max Power Consumption: 3.67 W (220 V/50 Hz no PD connected) 73.24 W (220 V/50 Hz with 63 W PD connected) |
| Warranty Information | |
| Warranty | 01-Year |

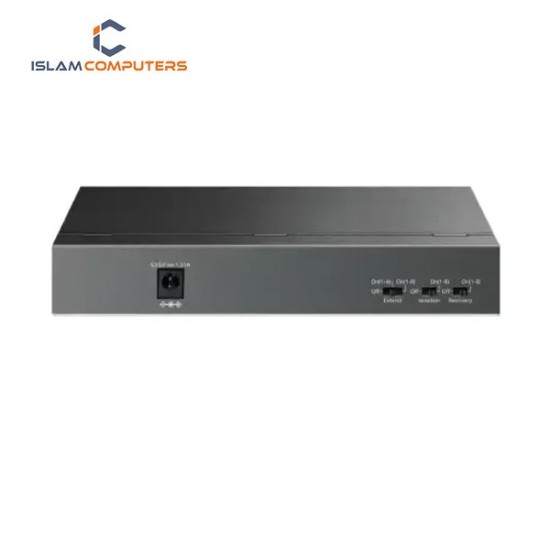

The TP-Link LS109P 9-Port 10/100Mbps PoE Switch with 8-Port PoE+ is a reliable and cost-effective networking solution designed for small businesses, offices, retail shops, and home surveillance setups. Available at Islam Computers, Tangail, this switch delivers stable wired connectivity while simplifying power management for PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones.
Equipped with 9 Fast Ethernet ports, the LS109P includes 8 PoE+ ports that comply with the IEEE 802.3af/at standards, allowing both data and power to be transmitted through a single Ethernet cable. Each PoE port can deliver up to 30W of power, with a total PoE power budget of up to 65W, making it ideal for powering multiple devices simultaneously without the need for additional power adapters or electrical outlets. This not only reduces installation complexity but also keeps cable management clean and organized.
The TP-Link LS109P supports 10/100Mbps auto-negotiation and Auto MDI/MDIX, ensuring smooth compatibility with a wide range of network devices. Its plug-and-play design means no configuration is required—simply connect your devices and the switch starts working instantly. This makes it especially suitable for users who want a hassle-free networking experience without technical setup.
For enhanced reliability, the LS109P features PoE Auto Recovery, which automatically detects and reboots connected PoE devices such as IP cameras if they become unresponsive. This function minimizes downtime and reduces the need for manual maintenance, making it a dependable choice for 24/7 surveillance and critical network applications.
The switch also includes Extend Mode, allowing PoE data and power transmission distances of up to 250 meters (at reduced speeds), ideal for large areas like warehouses, factories, or multi-floor buildings. Additionally, Priority Mode helps protect critical devices by ensuring high-priority ports receive power first when the total power consumption approaches the limit.
Built with a durable metal chassis, the TP-Link LS109P offers excellent heat dissipation and long-term reliability. Its compact and fanless design ensures silent operation, making it suitable for office environments. For those looking for an affordable, efficient, and robust PoE switch, the TP-Link LS109P from Islam Computers, Tangail is an excellent networking solution.
