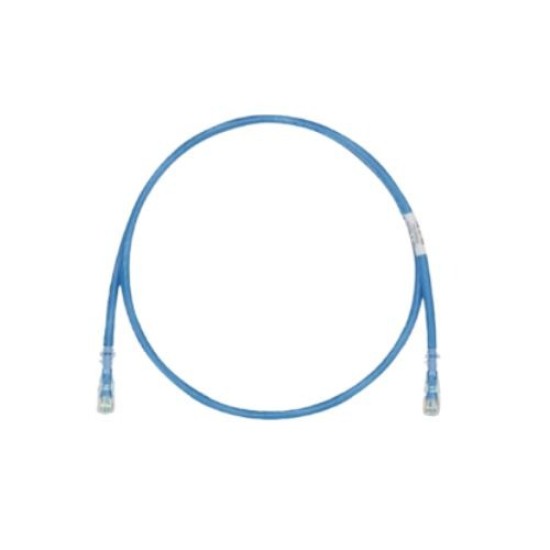

The Panduit UTPSP1MBUY 1M UTP Patch Cord is a high‑performance Category 6 Ethernet cable designed for reliable network connectivity in offices, server rooms, data centers, and home networks. Constructed with 24 AWG unshielded twisted pair copper and fitted with TX6™ PLUS modular RJ45 plugs on each end, this 1 meter patch cord delivers excellent signal integrity and gigabit data transmission for applications such as Fast Ethernet (100BASE‑T), Gigabit Ethernet (1000BASE‑T), 10GBASE‑T (limited distances), VoIP, digital video, and broadband connections.
Its tangle‑free latch and slender strain relief boot make installation and frequent moves, adds, and changes simple—especially in high‑density patch panels. The cord is fully compatible with T568A and T568B wiring schemes, meets stringent ANSI/TIA‑568.2‑D and ISO/IEC 11801 Class E standards, and is built for long‑lasting performance with up to 2500 mating cycles and full UL 1863 and RoHS compliance.
Short Specifications
-
Model: UTPSP1MBUY
-
Brand: Panduit
-
Type: Category 6 UTP Patch Cord
-
Length: 1 Meter (≈ 3.3 ft)
-
Cable: 24 AWG Unshielded Twisted Pair (U/UTP) Copper
-
Connectors: RJ45 Modular Plugs (both ends)
-
Performance: Cat 6 / Class E (1–250 MHz)
-
Compatible Wiring: T568A & T568B
-
Color: Blue
-
Standards: ANSI/TIA‑568.2‑D, ISO/IEC 11801 Class E, UL 1863, RoHS
-
Features: Tangle‑free latch, slender strain relief boot, RapidID traceability
-
Use: Ethernet, VoIP, digital video & broadband connections
