- Stock: In Stock
- Brand: ONV
- Model: ONV-H3016PFD
Key Features
- Brand: ONV
- PoE Port: Port 1-16
- Switching Capacity: 38Gbps (non-blocking)
- Forwarding Rate@64byte: 28.28Mpps
| General | |
| Brand | ONV |
| Model | ONV-H3016PFD |
| Interface Characteristics | |
| Ethernet Port | Port 1-18 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
| Fixed Port | 1*1000Base-X uplink SFP fiber port (Data) 2*10/100/1000Base-T uplink RJ45 ports (Data) 16*10/100/1000Base-T PoE ports (Data/ Power) |
| Function Switch | E file: long-distance function (Default-OFF, enable-ON), when opening, port 9-16 support 10M/250 meters transmission |
| Optical Cable/ Distance | Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
| Optical Fiber Port | Default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module, LC) |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
| Chip Parameter | |
| Buffer Memory | 4M |
| Forwarding Mode | Store and forward(Full wire speed) |
| Forwarding Rate@64byte | 28.28Mpps |
| Jumbo Frame | 9.2K |
| LED Indicator | Power: PWR (Green), Network: Link (Green), PoE: PoE (Red), Function switch: EXTEND (Green) |
| MAC | 4K |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
| Switching Capacity | 38Gbps (non-blocking) |
| PoE& Power Supply | |
| Max Power Per Port | 30W, PoE+ |
| PoE Port | Port 1-16 |
| Power Consumption | Standby<12W, full load<250W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz, 4.1A |
| Power Supply Pin | 1/2(+) 3/6(-) |
| Total PWR/ Input Voltage | 250W/ (AC100-240V) |
| Physical Parameter | |
| Installation | Desktop, Rack-mounted |
| Operation Temp/ Humidity | -20°C~55°C, 5%~90% RH non-condensing |
| Storage Temp/ Humidity | -40°C~80°C, 5%~95% RH non-condensing |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 350*215*44mm |
| Weight | 2.0kg/ 2.5kg |
| Warranty Information | |
| Warranty | 1-Year |

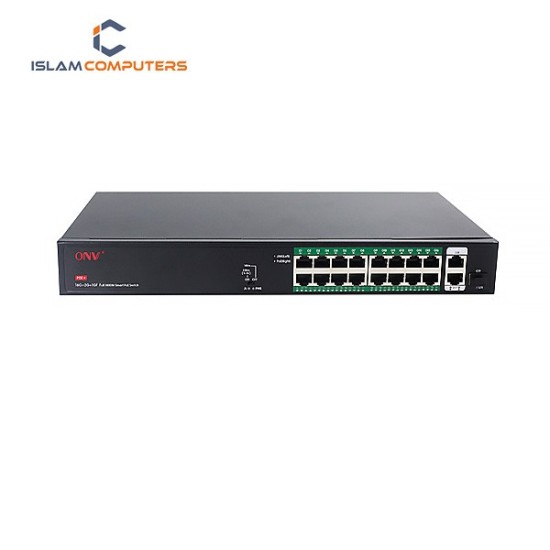

ONV Gigabit 19-Port PoE Switch – Reliable Network Power & Data Solution | Islam Computers Tangail
The ONV Gigabit 19-Port PoE Switch is a powerful and reliable networking solution that delivers high-speed data transmission and a stable power supply through a single Ethernet cable. Ideal for surveillance systems, office networks, and enterprise environments, this switch is widely used for connecting IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.
Equipped with 19 Gigabit Ethernet ports, this ONV switch ensures fast and stable network connectivity with speeds up to 1000Mbps. The PoE technology allows devices to receive both power and data through the same network cable, eliminating the need for separate power adapters and reducing installation complexity. This makes it a perfect choice for security systems and structured network setups.
The switch supports IEEE 802.3af/at PoE standards, ensuring compatibility with most modern PoE devices. With intelligent power management, it automatically detects connected devices and supplies the appropriate amount of power, helping protect devices from overload or short circuits.

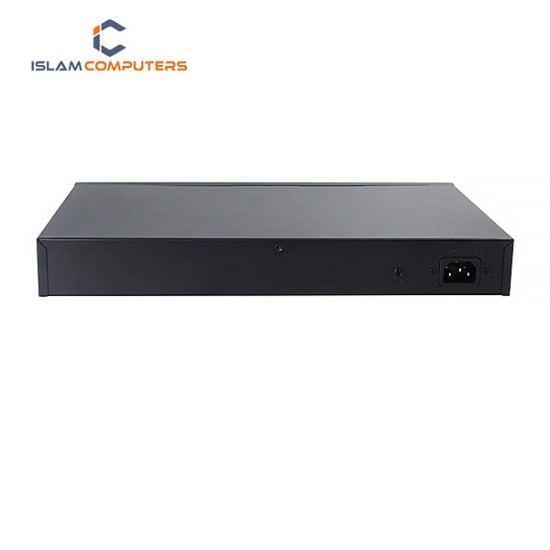

Built with a durable metal housing, the ONV 19-Port PoE Switch provides excellent heat dissipation and long-term durability. It is designed for rack-mount installation, making it ideal for server rooms, network cabinets, and professional networking environments.
The switch also supports plug-and-play functionality, allowing users to quickly set up the network without complicated configuration. Its stable performance and reliable data transfer make it suitable for both small and large-scale network infrastructures.
Whether you are building a CCTV surveillance network, office LAN, or enterprise-level communication system, the ONV Gigabit 19-Port PoE Switch provides dependable performance and efficient power distribution.
You can purchase the ONV Gigabit 19-Port PoE Switch from Islam Computers, Tangail, Bangladesh, a trusted destination for networking devices, security equipment, and computer accessories. Islam Computers offers genuine products, competitive pricing, and reliable customer support to meet your networking needs.
