| General | |
| Brand | MERCUSYS |
| Model | MR39-HP AC1200 |
| Wireless | |
| Wi-Fi Class | AC1200 |
| Wi-Fi (2.4 GHz) | 300 Mbps |
| Wi-Fi (5 GHz) | 867 Mbps |
| Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Max Channel Width | 80 MHz |
| Max Wi-Fi Modulation | 1024-QAM |
| Reception Sensitivity | 5 GHz: 11ac VHT20 MCS0: -96 dBm 11ac VHT20 MCS8: -74 dBm 11ac VHT40 MCS9: -69 dBm 11ac VHT80 MCS9: -65 dBm 2.4 GHz: 11g 6Mbps: -96 dBm 11g 54Mbps: -78 dBm 11n HT40 MCS7: -74 dBm 11n HT20 MCS7: -77 dBm |
| Wireless Security | WPA / WPA2 / WPA3 |
| Wireless Functions | Guest Network, Wireless Schedule, WPS, AP Isolation |
| Key Features | |
| Antenna | 2× 5 GHz External Antennas (7 dBi) 2× 2.4 GHz External Antennas (7 dBi) |
| Button | 1× WPS Button 1× Reset Button 1× Turbo Button |
| Connectivity & Compatibility | |
| Interface | 1× 10/100 Mbps WAN Port 3× 10/100 Mbps LAN Ports |
| Power | |
| Power Supply | Input: 100–240V, 50/60Hz Output: 12V / 1A |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 215.80 × 140.33 × 50.45 mm |
| Warranty Information | |
| Warranty | 1-Year |

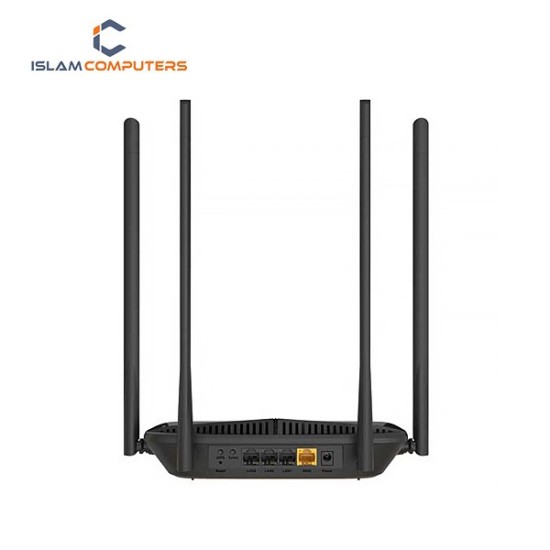

The MERCUSYS MR39-HP AC1200 High Power Wireless Dual-Band Router is designed to provide powerful, stable, and high-speed wireless connectivity for homes, offices, and small businesses. Equipped with advanced AC1200 dual-band technology, this router delivers combined wireless speeds of up to 1200Mbps, including 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, ensuring smooth online gaming, HD streaming, video conferencing, and fast downloads.

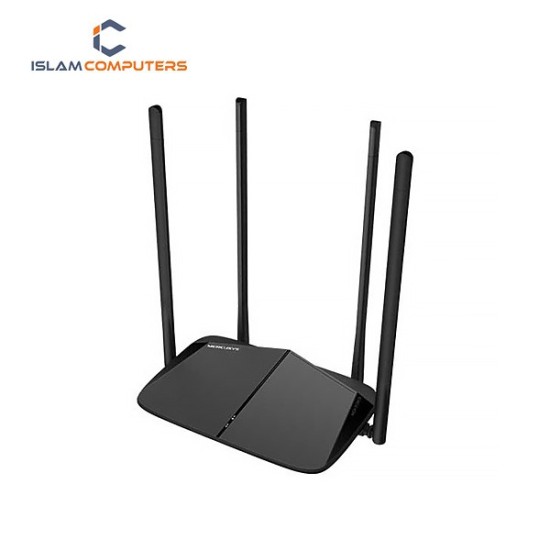

One of the standout features of the MR39-HP is its four high-gain 7dBi external antennas, which significantly improve wireless coverage and signal strength throughout your home or office. Combined with powerful external FEMs (Front-End Modules), the router enhances signal penetration through walls and obstacles, helping eliminate dead zones and ensuring reliable connectivity in every corner.
The dedicated Turbo Button allows users to instantly boost Wi-Fi performance and extend wireless coverage with a single press. This feature is particularly useful for larger homes or multi-room environments where strong signal distribution is essential.
The MERCUSYS MR39-HP supports multiple operating modes, including Router Mode, Access Point Mode, and Range Extender Mode. This flexibility allows users to adapt the device according to different networking requirements, making it suitable for both residential and commercial applications.
Security is also a major focus of the MR39-HP. It supports WPA, WPA2, and the latest WPA3 wireless security standards, helping protect your network from unauthorized access. Additional features such as Guest Network, Parental Controls, Access Control, SPI Firewall, and IPv6 support provide enhanced network management and protection.
Managing your network is simple with the MERCUSYS mobile app, which enables quick setup and convenient monitoring from Android and iOS devices. The router also features Beamforming technology, which intelligently directs wireless signals toward connected devices for improved performance and stability.
