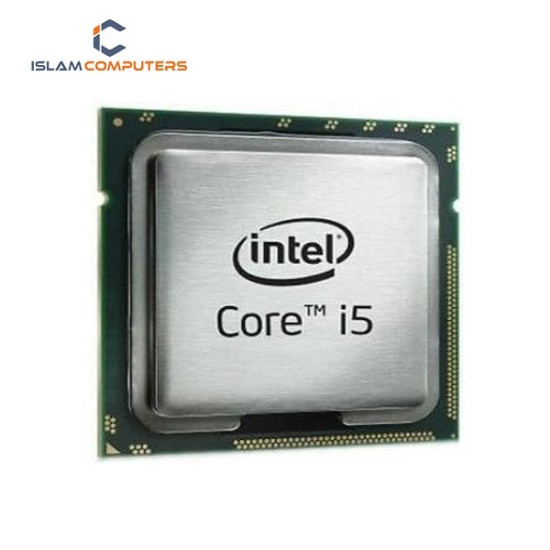

INTEL Intel Core i5-4670 Processor 3.4GHz 6MB LGA 1150

Full Specification – Intel Core i5-4670

Processor Overview

Model: Intel Core i5-4670

Generation: 4th Gen (Haswell)

Socket: LGA 1150

Cores / Threads: 4 Cores / 4 Threads

Base Clock: 3.40 GHz

Max Turbo Boost: Up to 3.80 GHz (Intel® Turbo Boost Technology 2.0)

Smart Cache: 6 MB Intel® Smart Cache

Instruction Set: 64-bit (x86-64)

Manufacturing Process: 22 nm

Thermal Design Power (TDP): 84 W

Memory Specifications

Maximum Memory Size: Up to 32 GB (dependent on memory type)

Memory Types Supported: DDR3-1333/1600, DDR3L-1333/1600

Memory Channels: Dual-Channel

Max Memory Bandwidth: 25.6 GB/s

ECC Memory Support: No

Integrated Graphics

Graphics Engine: Intel® HD Graphics 4600

Base Graphics Frequency: 350 MHz

Max Dynamic Frequency: 1.20 GHz

Graphics Features:

Intel® Quick Sync Video

Intel® Clear Video HD Technology

Intel® InTru™ 3D Technology

Intel® Wireless Display

Intel® Insider

Max Displays Supported: Up to 3

Max Resolution (examples):

HDMI: 4096×2304 @24 Hz

DisplayPort (DP): 3840×2160 @60 Hz

eDP: 3840×2160 @60 Hz

VGA: 1920×1200 @60 Hz

Expansion & Connectivity

PCI Express Revision: 3.0

PCIe Configurations:

Up to 1×16

Up to 2×8

Up to 1×8 + 2×4

PCIe Lanes: 16

Advanced Technologies & Features

Intel® Turbo Boost Technology 2.0

Intel® Virtualization Technology (VT-x)

Intel® VT-d (Virtualization for Directed I/O)

Intel® 64 Architecture

Enhanced Intel® SpeedStep® Technology

Intel® Trusted Execution Technology

Intel® AES New Instructions (AES-NI)

Execute Disable Bit

Idle States

Intel® Identity Protection Technology

Intel® Advanced Vector Extensions (AVX, AVX2)

Physical & Power

Package: FC-LGA12C

Die Size: ~177 mm²

Recommended Thermal Solution: PCG 2013D

Max Operating Temperature (Tcase): ~72 °C

Power Consumption: 84 W TDP

Status

Launch Date: Q2’2013

Discontinued: Yes (servicing ended)
