| Auxiliary Interface | |
| USB | Rear panel: 2 × USB 2.0 |
| General Information | |
| Others | Stream Type: Video, Video & Audio Audio Compression: G.711u Audio Bitrate: 64 Kbps |
| Network | |
| Network Function | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Recording | |
| Bit Rate | 32 Kbps to 6 Mbps |
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Record Rate | Mainstream: When 1080p Lite mode is not enabled: For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Resolution | When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Video Detection And Alarm | |
| Video Detection | Deep learning-based motion detection 2.0 is enabled by default for all analog channels; it can classify humans and vehicles, and can extremely reduce false alarms caused by objects like leaves and lights. Quick search by object or event type is supported |
| General | |
| Brand | Hikvision |
| Model | iDS-7116HQHI-M1/S 16 Channel |
| Hardware | |
| Ethernet Ports | 1, RJ45 10M/100M/1000M |
| Storage | |
| Internal HDD | 1 SATA interface |
| Power | |
| Power Consumption | ≤ 24W |
| Power Supply | 12 VDC, 2A |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) |
| Weight | ≤ 1 kg (2.2 lb) |
| Warranty Information | |
| Warranty | 01-Year |

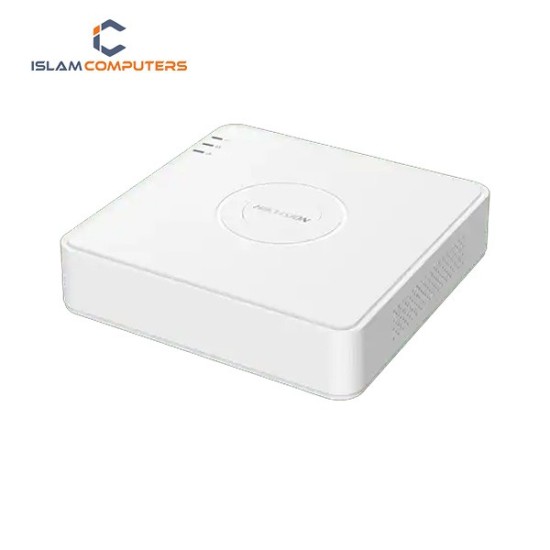

The Hikvision iDS-7116HQHI-M1/S 16 Channel AcuSense DVR is a high-performance digital video recorder designed to deliver advanced surveillance capabilities for both residential and commercial environments. Featuring cutting-edge AcuSense technology, this DVR ensures smarter and more efficient security monitoring by distinguishing between humans, vehicles, and irrelevant objects, reducing false alarms and improving overall response times. This makes it an ideal solution for businesses, offices, and large properties where reliable security is essential.
Equipped with 16 channels, the iDS-7116HQHI-M1/S supports extensive multi-camera setups, allowing comprehensive coverage of your premises. Each channel can handle high-definition video inputs, supporting resolutions up to 4MP, ensuring clear and detailed footage for accurate monitoring and evidence recording. Its compatibility with Hikvision Turbo HD cameras allows easy integration with existing analog systems, making upgrades seamless without the need for a full system overhaul.
The DVR features an intuitive user interface with easy-to-navigate menus, enabling fast setup and efficient management of multiple cameras. With smart search capabilities, users can quickly locate critical events using motion detection or object filtering, significantly saving time in reviewing footage. The iDS-7116HQHI-M1/S also supports H.265+ video compression, which optimizes storage space without compromising video quality, allowing longer retention periods and cost-effective storage management.
Connectivity options are flexible, offering both HDMI and VGA outputs for live viewing on monitors, alongside network access for remote monitoring via computers, smartphones, or tablets using the Hik-Connect app. This ensures users can keep an eye on their property from anywhere, at any time. Additional features include alarm inputs and outputs, backup options via USB or network, and robust data encryption, providing enhanced security for stored video files.
Designed with reliability and durability in mind, the Hikvision iDS-7116HQHI-M1/S operates efficiently under various environmental conditions, making it suitable for 24/7 surveillance. Its powerful processing capabilities handle multiple simultaneous streams without lag, ensuring smooth recording and playback.
In summary, the Hikvision iDS-7116HQHI-M1/S 16 Channel AcuSense DVR is a top-tier security solution that combines advanced AI-driven detection, high-definition recording, flexible connectivity, and user-friendly management. Ideal for professional surveillance setups, it provides peace of mind through smarter monitoring and reliable performance. Available now at Islam Computers Tangail, it is the perfect choice for anyone looking to upgrade their security infrastructure with cutting-edge technology.
