- Stock: In Stock
- Brand: Hikvision
- Model: DS-7116HGHI-M1/T
Key Features
- Supports up to 16 analog HD camera channels
- Compatible with HDTVI, AHD, CVI, CVBS, and IP cameras
- H.265 Pro+ video compression for reduced storage usage
- Full HD 1080p Lite recording and playback
| General | |
| Brand | Hikvision |
| Model | DS-7116HGHI-M1/T |
| Audio and Video | |
| IP Camera Input | 16 Channel |
| Two-Way Talk | |
| Storage | |
| HDD Mode | 1 x SATA |
| Internal HDD | Up to 6TB |
| Component Environment | |
| Operational Conditions | Working Temperature -10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10% to 90% |
| Main Features | |
| Other Feature | Dual-stream Support Total Bandwidth: 96 Mbps |
| Video | |
| Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For standard definition stream access: WD1/4CIF/VGA/CIF |
| Auxiliary Interface | |
| USB | 2 x USB 2.0 |
| Playback And Backup | |
| Sync Playback | 16-ch |
| Recording | |
| Bit Rate | 32 Kbps to 4 Mbps Audio Bitrate: 64 Kbps |
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Network | |
| Ethernet | 1 x RJ45 10M/100M self-adaptive Ethernet interface |
| Maximum User Access | 128 |
| Power | |
| Power Consumption | <- 7 W (without HDD) |
| Power Supply | 12 VDC, 2 A |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch) |
| Weight | <- 1.8 kg |
| Warranty Information | |
| Warranty | 1-Year |
Secure your home, office, or business with the Hikvision DS-7116HGHI-M1/T 16 Channel Lite Mini 1U DVR. Enjoy reliable 16-channel surveillance, H.265 Pro+ compression, Full HD recording, and remote monitoring—all available at Islam Computers, Tangail, Bangladesh.
The Hikvision DS-7116HGHI-M1/T 16 Channel Lite Mini 1U DVR is a reliable and cost-effective digital video recorder designed for homes, offices, retail shops, warehouses, schools, and commercial security systems. Supporting up to 16 analog camera channels, this DVR offers excellent performance with advanced video compression technologies and flexible camera compatibility, making it an ideal solution for modern surveillance requirements.
Powered by H.265 Pro+ video compression, the DS-7116HGHI-M1/T significantly reduces storage usage while maintaining high-quality video recordings. This allows users to retain footage for longer periods without requiring additional hard drive capacity, helping reduce storage costs while maximizing efficiency.
This Lite Series DVR supports multiple video formats, including HDTVI, AHD, CVI, CVBS, and IP cameras, giving users the flexibility to integrate existing surveillance equipment or upgrade their security system over time. It supports recording resolutions up to 1080p Lite, delivering clear and detailed video for effective monitoring and evidence collection.

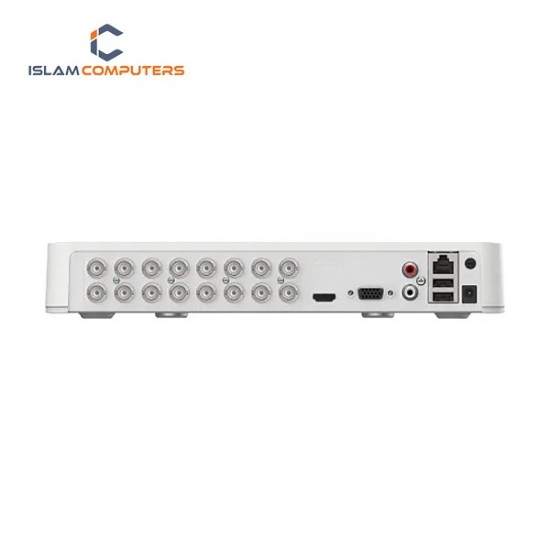

The DVR features HDMI and VGA outputs, allowing users to connect monitors for live viewing and playback with crisp image quality. Its intuitive user interface makes system setup, playback, backup, and remote management simple for both beginners and professional installers.
With remote access support through Hik-Connect, users can monitor their security cameras from anywhere using a smartphone, tablet, or computer. Whether you're traveling or away from your business, you can view live video, receive alerts, and review recorded footage in real time, ensuring peace of mind at all times.
The compact Mini 1U design allows for easy installation in security cabinets, offices, or small equipment racks. It also supports SATA hard drives for extended recording capacity, making it suitable for continuous 24/7 surveillance applications.
Whether you're upgrading an existing CCTV system or building a new one, the Hikvision DS-7116HGHI-M1/T offers dependable performance, excellent compatibility, and outstanding value.
Purchase the Hikvision DS-7116HGHI-M1/T 16 Channel Lite Mini 1U DVR from Islam Computers, Tangail, Bangladesh, and enjoy genuine Hikvision products, competitive pricing, professional installation assistance, and dependable after-sales service. Protect what matters most with a trusted surveillance solution from one of the world's leading security brands.
