- Stock: In Stock
- Brand: Hikvision
- Model: DS-7104HGHI-M1/T
Key Features
- Model: DS-7104HGHI-M1/T
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/CVI/AHD/IP/CVBS video inputs
- Up to 5-ch IP camera inputs
| Audio and Video | |
| IP Camera Input | Up to 4ch IP camera inputs 1-ch (up to 5-ch) Up to 2MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Two-Way Talk | Support all channels of HDTVI two-way audio technology |
| Network Standards | |
| Ethernet | SATA-1 SATA interface Capacity: Up to 4 TB capacity for each disk USB Interface-Rear panel: 2 × USB 2.0 64 Mbps |
| Recording | |
| Bit Rate | 32 Kbps to 4 Mbps |
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Record Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N) |
| Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF |
| General | |
| Brand | Hikvision |
| Model | DS-7104HGHI-M1/T |
| Features | |
| Others | Stream Type-Video, Video & Audio Audio Compression-G.711u Audio Bitrate-64 Kbps Audio over coaxial cable, motion detection |
| Display Features | |
| Resolution | Analog Video Input-4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI Input-1080p25, 1080p30, 720p25, 720p30 AHD Input-1080p25, 1080p30, 720p25, 720p30 HDCVI Input-1080p25, 1080p30, 720p25, 720p30 CVBS Input-Support HDMI Output-1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output-1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Video Output Mode: HDMI/VGA simultaneous output Audio Input-1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable Audio Output-1-ch, RCA (Linear, 1 KΩ) |
| Network | |
| Interface | SATA-1 SATA interface Capacity: Up to 4 TB capacity for each disk USB Interface-Rear panel: 2 × USB 2.0 64 Mbps |
| Network Function | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS |
| Power | |
| Power Consumption | ≤ 10 W (without HDD) |
| Power Supply | 12 VDC, 1.5 A |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch) ≤ 0.8 kg (without HDD, 1.8 lb.) |
| Color | White |
| Warranty Information | |
| Warranty | 1 Year |

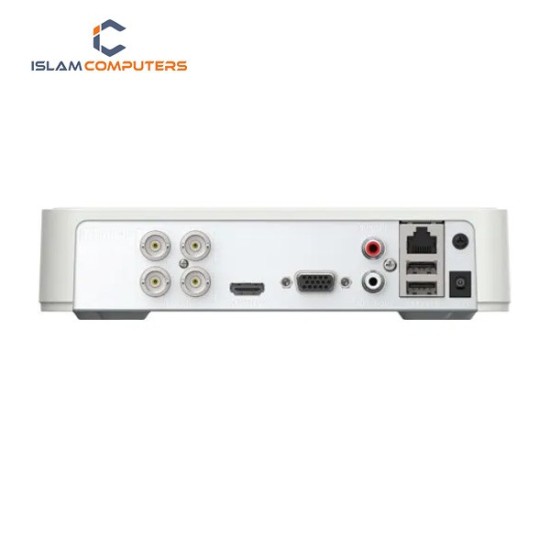

Hikvision DS-7104HGHI-M1/T 04 Channel DVR
The Hikvision DS-7104HGHI-M1/T 04 Channel DVR is a reliable and cost-effective video recording solution designed for small to medium-scale surveillance needs. Ideal for homes, retail shops, offices, and small businesses in Tangail, this DVR delivers dependable performance with advanced Hikvision technology, ensuring your security system operates smoothly around the clock.
This 4-channel DVR supports HD analog cameras with multiple video formats, including HDTVI, AHD, CVI, and CVBS, offering excellent compatibility with both new and existing CCTV setups. It allows users to connect up to four cameras simultaneously, making it a practical choice for monitoring key areas such as entrances, counters, and storage spaces. With up to 1080p Lite resolution, the DS-7104HGHI-M1/T ensures clear and detailed video footage for accurate monitoring and playback.
Powered by H.265+ video compression technology, this DVR significantly reduces bandwidth usage and hard disk storage consumption without compromising image quality. This means longer recording times and lower storage costs, making it an economical solution for long-term surveillance. The DVR supports 1 SATA hard drive (up to 6TB), giving users ample space to store video recordings securely.
The Hikvision DS-7104HGHI-M1/T also features advanced motion detection and smart search functions, helping users quickly locate important events and reduce unnecessary footage. Its user-friendly interface ensures easy system setup, camera management, and playback control, even for users with minimal technical experience.
For remote monitoring, the DVR supports Hik-Connect, allowing users to view live video and recorded footage from smartphones, tablets, or computers anytime and anywhere. This feature is especially useful for business owners in Tangail who want to keep an eye on their premises while away.
Built with Hikvision’s trusted quality and durability, the DS-7104HGHI-M1/T is designed for stable 24/7 operation. Available at Islam Computers, Tangail, this DVR is an excellent choice for anyone seeking a dependable, affordable, and feature-rich 4-channel CCTV recording solution to enhance overall security and peace of mind.
