| Image | |
| Noise Reduction | Yes |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Dual-Stream | Yes |
| Network | |
| Protocol | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| Technical Info | |
| Video Type | Main stream: H.265+/ H.265/ H.264+/ H.264, Sub-stream: H.265/ H.264/ MJPEG |
| Technical Info | |
| Mic & Speaker | Only Mic |
| Scanning System | Progressive |
| Working Distance | 76 Meter |
| Transmitter | |
| Wavelength | 850nm |
| Features | |
| Others | Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR, Angle Adjustment: Pan: 0 Degree to 355 Degree, tilt: 0 Degree to 75 Degree, rotate: 0 Degree to 355 Degree, Aperture: F1.6, DORI: 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m, Supplement Light Type: IR,White Light, Supplement Light Range: Up to 30 m, Video Bit Rate, 32 Kbps to 16 Mbps, H.264 Type: Baseline Profile, Main Profile, High Profile, H.265 Type: Main Profile, H.265 Type: Main Profile, Bit Rate Control: CBR, VBR, Region of Interest (ROI): 1 fixed region for main stream, Scalable Video Coding (SVC): H.264 and H.265 encoding, Audio Sampling Rate: 8 kHz/16 kHz, Audio Compression: G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/ AAC-LC, Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/ 16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC), API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK,Hik-Connect, User/Host: Up to 32 users, Client: iVMS-4200,Hik-Connect, Web Browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+, Day/Night Switch: Day, Night, Auto, Schedule, Image Enhancement: BLC, HLC, 3D DNR, Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser. |
| General | |
| Usage | Outdoor |
| Brand | Hikvision |
| Model | DS-2CD1163G2-LIU |
| Type | Fixed Dome IP Camera |
| Camera | |
| Camera Type | Fixed |
| Day & Night | IR cut filter |
| Night Vision | Yes |
| Night Vision Mode | Black and White |
| Resolution | Main Stream: 50Hz: 20fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720), 60Hz: 20fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720), Sub-Stream: 50Hz: 20fps (1280 x 720, 640 x 480, 640 x 360), 60Hz: 20fps (1280 x 720, 640 x 480, 640 x 360) |
| Sensor Type | 1/2.4 Inch Progressive Scan CMOS |
| Shutter Time | 1/3 s to 1/100,000 s |
| Effective Pixels | 6.0 |
| Maximum Resolution | 3200 x 1800 |
| DNR | 3D DNR |
| WDR | 120 dB |
| Number of Camera | 1 |
| External Features | |
| Material | Metal + Plastic |
| Network & Connectivity | |
| Sim Supported | No |
| Lens | |
| PTZ | No |
| Number of Lens | Single Lens (Primary) |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Lens | 2.8mm |
| Connectivity & Compatibility | |
| Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Display Features | |
| Viewing Angle | 105 Degree (H), 55 Degree (V), 127 Degree (D) |
| Network & Connectivity | |
| Sim Network Type | Not Applicable |
| WiFi | No |
| Power | |
| Power Consumption | 7.5W |
| Power Supply | 12 VDC +- 25%, 0.5 A, max. 6W, 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3 |
| Security | |
| Defense System | Thieve Detection |
| Human Detection | Yes |
| Motion Detection | Yes |
| Password Protection | Yes |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE, and digest authentication for Open Network Video Interface, security audit log, and host authentication (MAC address) |
| Water Protection | Yes |
| Watermark | Yes |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 121.4 x 97.6mm |
| Weight | 550 gm |
| Color | White |
| Warranty Information | |
| Warranty | 2 Year (Without Adapter) |

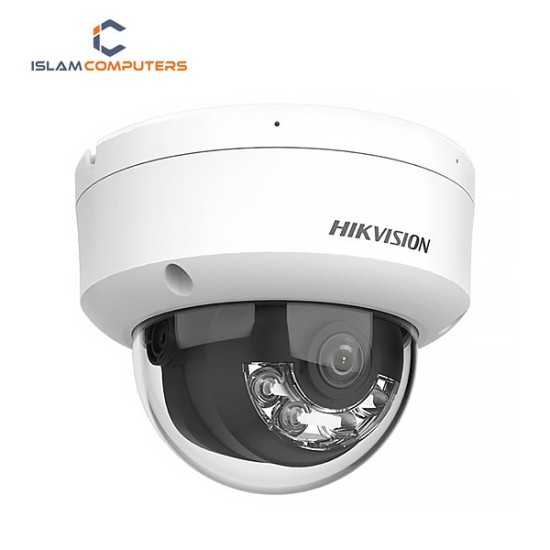

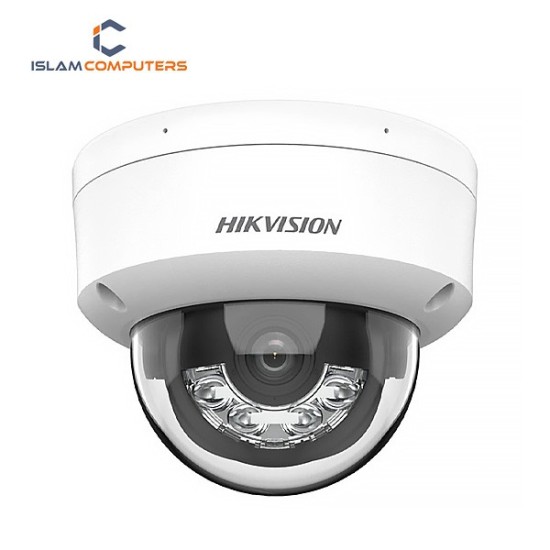

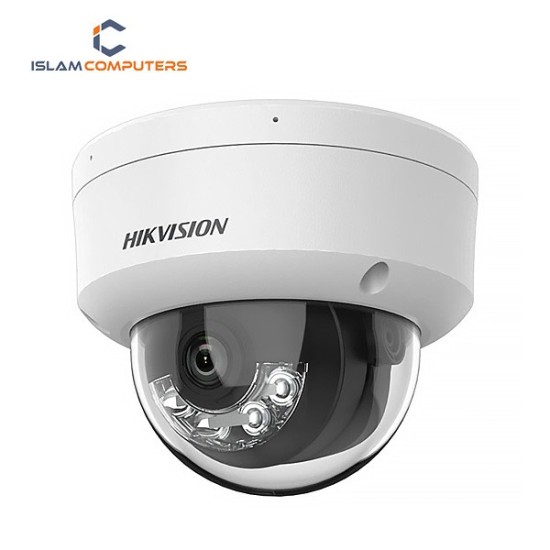

The Hikvision DS-2CD1163G2-LIU (2.8mm) 6MP Smart Hybrid Light Fixed Dome IP Camera is an advanced surveillance solution designed to deliver crystal-clear security monitoring for homes, offices, shops, and commercial environments. Equipped with a powerful 6MP high-resolution sensor, this camera captures ultra-detailed images, ensuring every important moment is recorded with exceptional clarity.
This camera features Smart Hybrid Light technology, which combines infrared (IR) light and white light to provide optimal night surveillance. In low-light conditions, the camera intelligently switches between IR mode for discreet monitoring and white light for full-color video recording, ensuring clear visibility even in complete darkness. With a night vision range of up to 30 meters, the camera guarantees reliable 24/7 protection.
The 2.8mm wide-angle lens offers a broad field of view, making it ideal for monitoring large areas such as entrances, hallways, parking areas, and retail spaces. Its built-in microphone allows the camera to capture audio along with video, adding an extra layer of security by recording sound evidence.
Powered by Hikvision’s Smart Detection technology, the DS-2CD1163G2-LIU supports advanced features, including human and vehicle detection, helping reduce false alarms caused by animals, rain, or moving objects. This intelligent detection ensures that users receive more accurate alerts and improved monitoring efficiency.
The camera supports H.265+ video compression, which significantly reduces bandwidth and storage requirements without compromising video quality. This makes it a cost-effective choice for long-term surveillance systems.
Designed with durability in mind, the fixed dome housing offers a compact and stylish appearance while providing strong protection against environmental conditions. It is suitable for both indoor and outdoor installations, ensuring long-lasting performance.
The Hikvision DS-2CD1163G2-LIU 6MP IP Camera is easy to integrate with modern NVR systems and remote monitoring applications, allowing users to access live footage anytime from smartphones, tablets, or computers.
Available at Islam Computers, Tangail, Bangladesh, this high-performance security camera is a reliable and efficient choice for anyone looking to upgrade their surveillance system with advanced technology and superior image quality.
