- Stock: In Stock
- Brand: Hikvision
- Model: DS-2CD1063G2-LIU(F)
- SKU: 4mm
Key Features
- Brand: Hikvision
- Model: DS-2CD1063G2-LIU(F)
- High-quality imaging with 6 MP resolution
- Support Human and Vehicle Detection
| Illuminator | |
| Supplement Light Type | IR,White Light |
| Supplement Light Range | Up to 30 m |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, HLC,3D DNR |
| Image | |
| Image Settings | Rotate mode, saturation, brightness,contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Network | |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
| Network Standards | |
| Ethernet | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Recording | |
| Audio Bitrate | 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Technical Info | |
| Microphone | Yes |
| General | |
| Brand | Hikvision |
| Model | DS-2CD1063G2-LIU(F) |
| Technical Specifications | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Camera | |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Day & Night | IR cut filter |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 3200 × 1800 |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Physical Specifications | |
| Material | Metal & Plastic |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Lens Mount | M12 |
| Aperture | F1.6 |
| Video | |
| Main Stream | 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Sub Stream | 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Bit Rate Control | CBR, VBR |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Software & Customization | |
| Onboard Memory | -F: Built-in memory card slot, supports microSD/microSDHC/microSDXC card, up to 256 GB |
| Power | |
| Power Supply | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Security | |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
| Weight | Approx. 285 g (0.6 lb.) |
| Warranty Information | |
| Warranty | 1-Year |

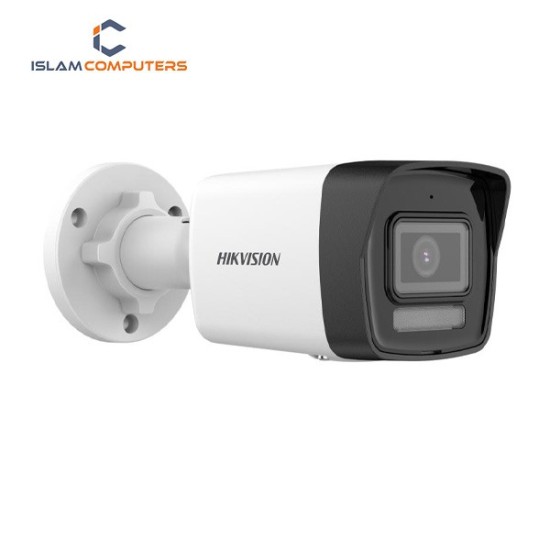

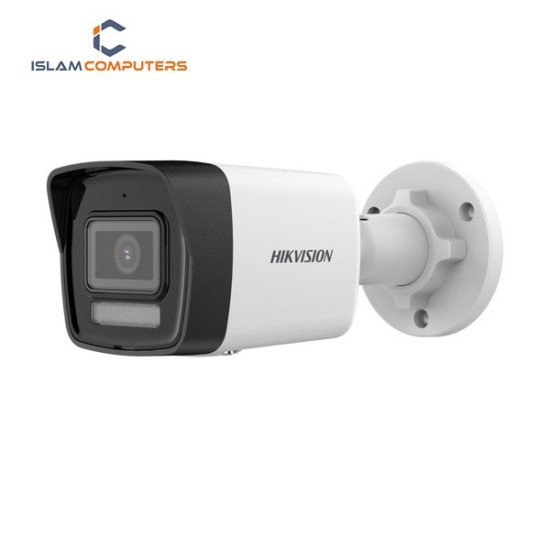

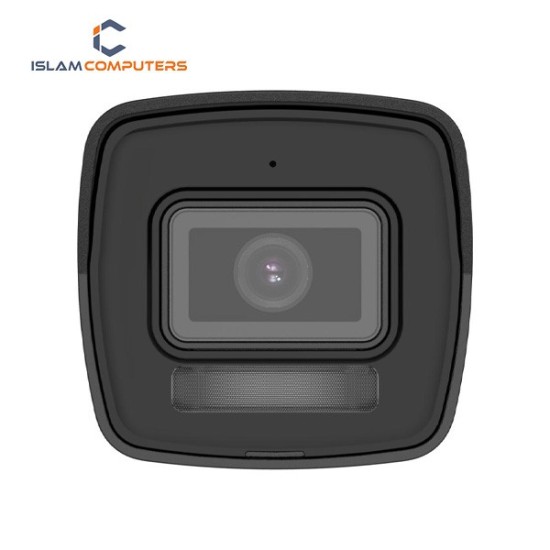

The Hikvision DS-2CD1063G2-LIU(F) 6 MP Smart Hybrid Light Fixed Bullet Network Camera is a powerful and reliable surveillance solution designed to deliver high-quality security monitoring for homes, offices, shops, warehouses, and outdoor environments. Available at Islam Computers, Tangail, this advanced IP camera combines superior image clarity, smart detection technology, and durable construction to ensure round-the-clock protection.
Equipped with a 6-megapixel high-resolution sensor, the camera captures exceptionally sharp and detailed images, allowing users to identify faces, vehicles, and objects with greater accuracy. Whether monitoring during the day or at night, the camera ensures consistent performance through Hikvision’s advanced Smart Hybrid Light technology. This intelligent lighting system automatically switches between infrared (IR) and white light, providing clear color images in low-light conditions while minimizing unnecessary light pollution.
The DS-2CD1063G2-LIU(F) features AcuSense AI-based motion detection, which intelligently distinguishes between humans and vehicles, significantly reducing false alarms caused by animals, rain, or moving objects. This makes the camera ideal for locations requiring accurate and efficient security alerts. Additionally, built-in active deterrence with white light helps discourage intruders in real time.
Designed for durability, the fixed bullet camera comes with a rugged IP67-rated weatherproof housing, ensuring reliable operation in harsh outdoor conditions such as rain, dust, and extreme temperatures. Its sleek bullet-style design allows for flexible wall or ceiling installation, making it suitable for both indoor and outdoor surveillance setups.
The camera supports H.265+ video compression, which significantly reduces bandwidth usage and storage requirements without compromising video quality. This allows users to store more footage while saving on storage costs. Compatibility with Hikvision NVRs and mobile viewing apps enables convenient remote monitoring anytime, anywhere via smartphone or computer.
In summary, the Hikvision DS-2CD1063G2-LIU(F) 6 MP Smart Hybrid Light Fixed Bullet Network Camera is an excellent choice for those seeking high-resolution imaging, intelligent detection, and dependable performance. Available from Islam Computers, Tangail, this camera delivers professional-grade security with advanced smart features, making it a smart investment for modern surveillance needs.
