| Basic Information | |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors |
| Chipset | AMD B550 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Graphics | ntegrated Graphics Processor with AMD Radeon™ Graphics support:V
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4) |
| Memory | |
| Maximum Memory | 128 GB |
| Supported Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| Slots | 4 x DIMM |
| Connector & Ports | |
| Audio | 3 x audio jacks |
| Display Port (s) | |
| HDMI | 1 x HDMI |

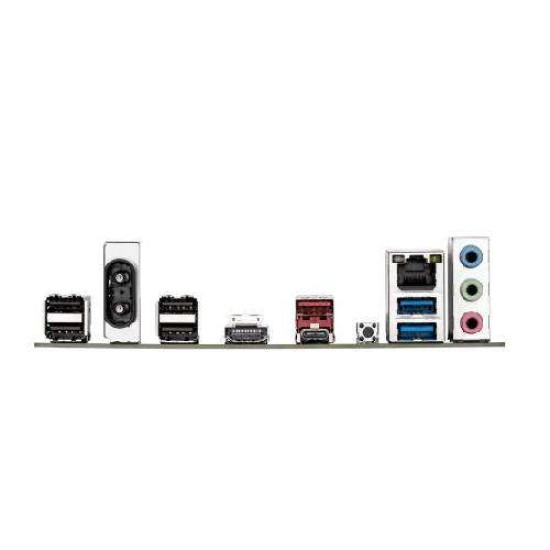

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 supportV 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers V 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 2 x antenna connectors (1T1R) 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| RAID | Support for RAID 0, RAID 1, and RAID 10 |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Special Features | |
| Other Features | Support for APP Center @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Warranty Information | |
| Warranty | 03 years |

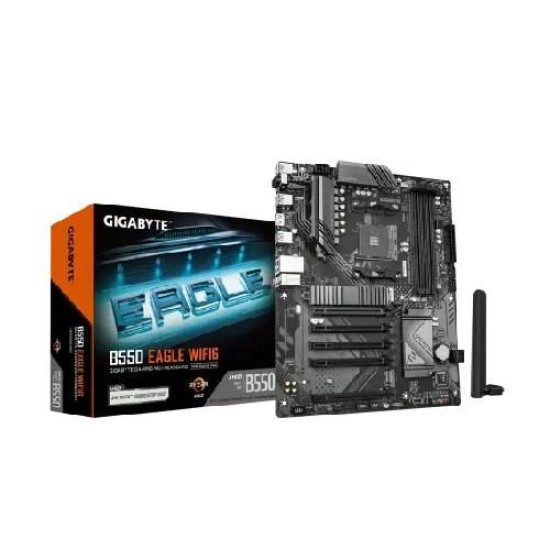

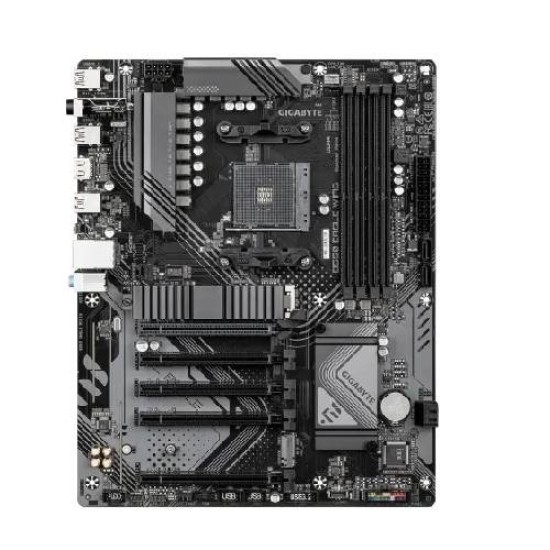

The Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard is engineered to deliver reliable performance, modern connectivity, and next-generation expandability for gaming, content creation, and productivity. Built around the AMD B550 chipset, it supports a wide lineup of AMD Ryzen processors, including Ryzen 5000, Ryzen 4000G, and Ryzen 3000 series CPUs. This ensures powerful multi-core performance and excellent system responsiveness for demanding workloads.Designed with stability and efficiency in mind, the motherboard features dual-channel DDR4 memory support with a capacity of up to 128GB, making it suitable for multitasking and memory-intensive applications. With two M.2 slots—one CPU-linked and one chipset-linked—it offers high-speed storage options with support for PCIe 4.0 (on supported processors), enabling significantly faster boot times, smoother game loading, and responsive workflow performance. Connectivity is one of the board’s standout features, thanks to built-in Wi-Fi 6, Bluetooth 5.3, and Realtek GbE LAN, providing fast and stable networking for online gaming and streaming. The versatile rear I/O layout includes multiple USB 3.2 Gen 1 ports, a USB 3.2 Gen 2 Type-A port, HDMI 2.1 support for integrated graphics, and convenient USB Type-C connectivity. To enhance system cooling and customization, the board includes multiple fan headers, RGB and addressable LED headers, and support for water-cooling pump configurations. The board’s high-quality components and durable PCB ensure long-term reliability, while features like Q-Flash Plus make BIOS updates simple and effortless. With its balanced blend of performance, connectivity, and durability, the Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard is an excellent choice for anyone building a modern AMD-powered system that demands speed, flexibility, and long-term upgrade potential.
