| Basic Information | |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors |
| Chipset | AMD A520 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.3cm x 19.8cm |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory | |
| Maximum Memory | 64 GB (32 GB single DIMM capacity) |
| Supported Memory | Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | 2 x DIMM |
| Connector & Ports | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/ 100 Mbps) |
| RAID | Support for RAID 0, RAID 1, and RAID 10 |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Graphics | |
| Graphics Memory | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for the HDMI 2.0 version and HDCP 2.2. |
| Ports & Slots | |
| HDMI Port | 1 x HDMI port |
| Warranty Information | |
| Warranty | 03-Year Warranty |

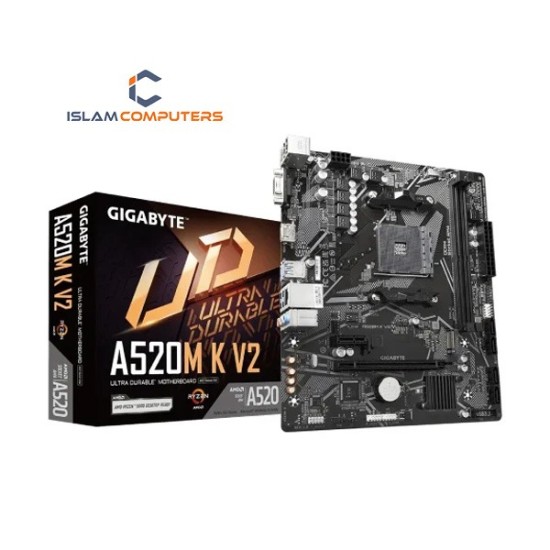

The GIGABYTE A520M K V2 AM4 Micro ATX Motherboard is a dependable and budget-friendly solution designed for users who want stable performance, modern connectivity, and long-term reliability. Ideal for home users, office setups, students, and entry-level gamers, this motherboard supports AMD Ryzen™ processors on the AM4 socket, making it a smart choice for building or upgrading a cost-effective PC at Islam Computers, Tangail.
Powered by the AMD A520 chipset, the A520M K V2 delivers smooth system performance with support for 3rd Gen AMD Ryzen™ processors and newer (with BIOS support). It features dual DDR4 memory slots, supporting up to 64GB of RAM, allowing users to enjoy faster multitasking, smoother application performance, and improved system responsiveness. Whether you are working with office software, browsing the web, or enjoying multimedia content, this motherboard ensures consistent stability.
The Micro ATX form factor makes the GIGABYTE A520M K V2 perfect for compact PC builds without compromising essential features. It includes a PCIe x16 slot for dedicated graphics cards, enabling users to build a capable system for casual gaming, content creation, or graphics-intensive tasks. For storage, the motherboard offers M.2 and SATA ports, supporting high-speed SSDs and traditional hard drives for fast boot times and ample data storage.
GIGABYTE’s renowned Ultra Durable™ design ensures long-lasting reliability. High-quality components, solid capacitors, and advanced power delivery help protect your system from voltage fluctuations and extendthe motherboard's lifespan. The board also includes Smart Fan 5 technology, allowing efficient thermal management with multiple temperature sensors and fan headers to keep your system cool and quiet.
Connectivity is another strong point, with USB 3.2 Gen 1 ports, HDMI display output, and high-definition audio support, delivering a modern and user-friendly experience. The clean BIOS interface makes system setup, tuning, and updates simple, even for first-time PC builders.
Overall, the GIGABYTE A520M K V2 AM4 Micro ATX Motherboard is an excellent choice for anyone seeking performance, durability, and value. Available at Islam Computers, Tangail, it’s a reliable foundation for building a stable and efficient AMD-based PC.
