| Temperature | |
| Operating Temperature | -30°C to 50°C ( -22 °F to 122 °F ) |
| Features | |
| Others | Weatherproof Design Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| General | |
| Brand | Ezviz |
| Model | CS-H90 |
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Effective Pixels | 4MP+4MP |
| Maximum Resolution | 2K+ (2560 × 1440) |
| Frame Rate | Self-adaptive during network transmission |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens | Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28° |
| IR Distance | 30 m (98 ft) |
| Pan & Tilt | Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28° |
| Field of View | Diagonal 110°, Horizontal 96°, Vertical 54° |
| Video Compression | H.265 / H.264 |
| Bit Rate | Quad HD; Full HD; Standard adaptive bit rate |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Smart Alarm | Motion Detection, Human Detection, Human Tracking, Noise Detection, Auto Patrol |
| Button | Reset Button |
| Storage Type | Micro SD card slot (Max. 512GB) |
| Network & Connectivity | |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch) |
| Weight | 1203 g (42.43 oz) |
| Color | White |
| Network & Connectivity | |
| Wireless Network | Wi-Fi Standard-IEEE802.11b, 802.11g, 802.11n Frequency Range-2.4 GHz ~ 2.4835 GHz Channel Bandwidth-Supports 20MHz Security-WPA-PSK/WPA2-PSK Transmission Rate-11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps Wi-Fi Pairing-AP paring Protocol EZVIZ-cloud proprietary protocol Interface Protocol-EZVIZ cloud proprietary protocol |
| Power | |
| Power Consumption | MAX. 18W |
| Power Supply | IP65 + 2h rainstorm |
| Warranty Information | |
| Warranty | 01 Year Warranty |

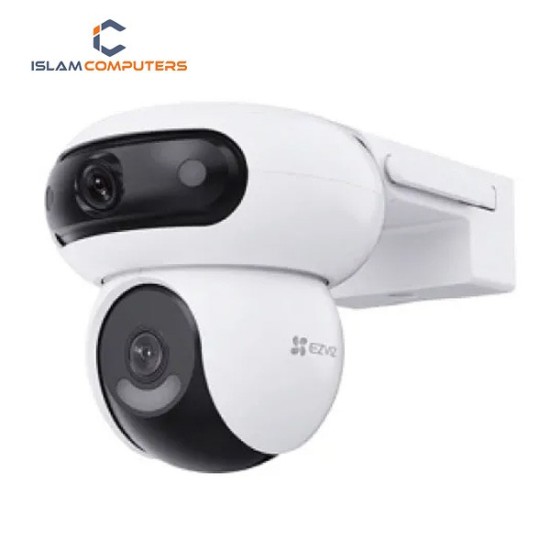

The EZVIZ CS-H90 Dual 4MP 2K+ Dome WiFi IP Camera is a powerful and versatile smart security camera designed to deliver exceptional surveillance performance for homes, offices, shops, and commercial spaces. Equipped with dual 4MP sensors and capable of capturing 2K+ (2560×1440) high-resolution video, this dual-lens Wi-Fi camera provides crisp, detailed footage that captures every important moment with clarity and precision — even at night or in challenging lighting conditions.
One of the standout features of the EZVIZ CS-H90 is its dual-lens system. The top lens sports a wide-angle 2.8 mm focal length that gives a broad field of view, while the bottom 6 mm lens zooms in for more focused detail. Together, these lenses work in harmony to deliver comprehensive coverage with minimal blind spots, making this camera ideal for larger areas where both wide-area monitoring and detailed zoom are required.
Thanks to its intelligent Wi-Fi connectivity, the CS-H90 can easily link to your home or business network without complex wiring. Installation is flexible and straightforward, so both tech-savvy users and beginners can set it up with minimal effort. The camera also supports wired Ethernet connectivity for more stable network performance when needed.
For day and night use, the CS-H90 delivers steady performance with its built-in infrared and color night vision capabilities. Whether it’s bright daylight or total darkness, you’ll enjoy reliable video quality around the clock. The camera’s imaging system automatically adjusts to lighting changes, ensuring balanced exposure and clear footage at all hours.
To make security even smarter, the EZVIZ CS-H90 supports AI-based detection features (depending on firmware and app support), helping you distinguish between people, vehicles, and other motion triggers — reducing false alarms and focusing attention on what matters most. Access live video, playback recordings, and receive real-time alerts right from the EZVIZ app on your smartphone, tablet, or PC.
Built for outdoor durability, the CS-H90 features a weather-resistant design with robust housing that withstands rain and harsh conditions. This makes it a reliable choice for outdoor entrances, yards, driveways, storefronts, and more.
Available at Islam Computers Tangail, this genuine EZVIZ camera comes with trusted after-sales support and a warranty — making it a dependable security upgrade for any environment where safety and peace of mind are a priority.
