| Key Features | |
| Fan Speed | 500~2250 RPM±10% |
| Fan Airflow | 85.85 CFM |
| Noise | Pump Noise 19 dB(A) Fan Noise ≤32.9 dB(A) |
| Air Pressure | 3.27 mmAq |
| Connector | Pump Connector: 3-pin Fan Connector: 4-pin PWM |
| Keyboard | |
| Type | Fluid Dynamic Bearing Liquid CPU Cooler |
| Features | |
| Others | Tube length: 410 mm Pump Speed: 3100 RPM±10% |
| General | |
| Brand | DeepCool |
| Model | LS520 |
| Physical Specifications | |
| Material | Radiator Material: Aluminum |
| Supported Sockets | |
| Intel | LGA2066/2011-v3/2011/1700/1200/1151/1150/1155 |
| AMD | sTRX4/sTR4/AM5/AM4 |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | Radiator Dimensions: 282×120×27 mm Pump Dimensions: 86×74×57 mm Fan Dimensions: 120×120×25 mm |
| Weight | 1305 g |
| Warranty Information | |
| Warranty | 05-Years |

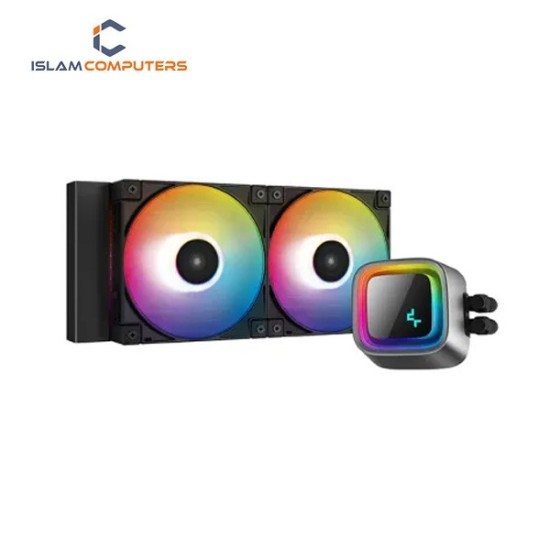

The DeepCool LS520 240mm Liquid CPU Cooler with 12th Gen Bracket is a high-performance all-in-one (AIO) cooling solution designed to keep modern desktop CPUs running cool under heavy workloads, whether you’re gaming, streaming, content-creating, or overclocking. Built with a large 240mm radiator and dual FC120 A-RGB PWM fans, the LS520 delivers powerful heat dissipation while maintaining low noise and striking visual appeal, making it a great upgrade for any mid- to high-end system build.
At the heart of the LS520 is DeepCool’s 4th Generation high-performance water pump, engineered to optimize coolant flow with an improved microchannel design and robust three-phase drive motor that spins up to 3100 RPM. This advanced pump design, paired with a solid copper base plate, ensures efficient heat transfer away from the CPU surface and helps maintain stable temperatures even during sustained heavy use.
The cooler’s 240 mm aluminum radiator provides ample surface area for heat exchange, and the included FC120 fans boast excellent static pressure and concentrated airflow (up to approximately 85.85 CFM) to push air through the radiator fins effectively. Despite their high airflow, the fans operate quietly, with maximum noise levels below 32.9 dB(A), so your system stays cool without becoming distracting.
A standout feature of the LS520 is its addressable RGB lighting and infinity mirror pump cap design. The dual light rings add a dynamic visual effect that enhances any build, and the RGB lighting can be synchronized with most popular motherboard software for custom lighting profiles and effects. For systems without a 5 V ARGB header, the cooler still defaults to an automatic rainbow lighting mode, ensuring vibrant aesthetics regardless of configuration.
Installation is straightforward thanks to the updated mounting hardware that includes a 12th Gen Intel bracket, making it compatible with a wide range of Intel and AMD sockets, including Intel LGA1700/1200/1151 and AMD AM5/AM4. This broad compatibility gives builders flexibility when upgrading or repurposing components across different systems.
Overall, the DeepCool LS520 combines reliable cooling performance, quiet operation, rich RGB styling, and easy installation into a sleek AIO package — ideal for gamers, enthusiasts, and anyone looking to enhance their PC cooling solution with both form and function.
