| Record Management | |
| Backup Mode | USB Device/Network |
| Record Mode | Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
| Audio and Video | |
| IP Camera Input | 16+2 channels, each channel up to 6MP |
| Two-Way Talk | Reuse audio in/out, RCA |
| Auxiliary Interface | |
| USB | 2 USB ports (USB 2.0) |
| Component Environment | |
| Operational Conditions | -10°C to +45°C (+14°F to +113°F), 10%–90% (RH) |
| Display & Optics | |
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| General Information | |
| Storage Conditions | -20°C to +70°C (-4°F to +158°F), 0%–90% (RH) |
| Network | |
| Interface | 1 RJ-45 Port (100 MB) |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Maximum User Access | 128 users |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Playback And Backup | |
| Search Mode | Time/Date, Alarm, MD, and Exact Search (accurate to second) |
| Sync Playback | 1/4/9/16 |
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom |
| Recording | |
| Bit Rate | 32 kbps–4096 kbps per channel |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Record Rate | Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/HD1/BCIF/CIF/QCIF (1 fps–25/30 fps) Sub stream: CIF/QCIF (1 fps–7 fps) |
| Resolution | 1080N; 720p; 960H; D1; HD1; BCIF; CIF; QCIF |
| Video Detection And Alarm | |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| General | |
| Brand | Dahua |
| Model | XVR1B16-I |
| Connectivity | |
| Interface(s) | 1 HDMI; 1 VGA |
| Storage | |
| Internal HDD | 1 SATA port, up to 6 TB capacity |
| Display Option | |
| Multi Display | When IP extension mode is not enabled: 1/4/8/9/16 When IP extension mode is enabled: 1/4/8/9/16 |
| Power | |
| Power Consumption | < 10W |
| Power Supply | DC 12V/2A |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | Compact 1U, 260.0 mm × 231.4 mm × 47.6 mm (10.24'' × 9.11'' × 1.87'') |
| Weight | 0.89 kg (1.96 lb) |
| Warranty Information | |
| Warranty | 1-Year |

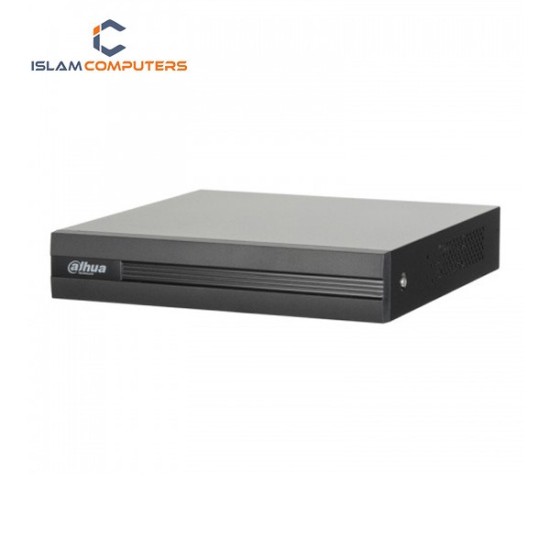

The Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder (DVR) is a powerful and versatile surveillance solution designed to meet the needs of both small businesses and residential security systems. Available at Islam Computers Tangail, this DVR delivers reliable performance, easy installation, and advanced features that enhance video monitoring and recording, making it perfect for users who demand high quality and flexibility without complexity.
At the heart of the XVR1B16-I is its 16-channel support, allowing you to connect up to sixteen cameras simultaneously. Whether you are securing a shop, office, school, or home, this capacity gives you full coverage with real-time monitoring across multiple areas. The Penta-brid technology is one of the standout features — it supports five types of video signal standards (TVI, AHD, CVI, CVBS, and IP). This means you can mix and match camera types without worrying about compatibility, giving you flexibility if you’re upgrading an old system or adding new components over time.
With high-definition recording, the DVR ensures that every detail is captured clearly. It supports up to 1080p resolution, delivering crisp, sharp video that makes identifying people and events easier than ever. Whether you’re watching live feeds or reviewing stored footage, the image quality remains consistent and dependable.
Storage is another strong point with the XVR1B16-I. It includes support for large-capacity hard drives (sold separately), allowing you to retain weeks of footage depending on your configuration. The system uses efficient compression technology to maximize storage without sacrificing image quality. This gives business and home users peace of mind knowing important recordings are safely archived.
The user interface is intuitive, with straightforward menus and accessible controls. Live monitoring and playback can be done directly from a connected monitor or remotely via mobile apps and web access. This means you can check on your property from anywhere, using your smartphone or computer.
In terms of build quality, the compact yet robust design of the DVR allows for easy placement in control rooms, under desks, or inside cabinets. It runs quietly and efficiently, requiring minimal maintenance.
Islam Computers Tangail offers the Dahua XVR1B16-I DVR as a reliable, scalable, and user-friendly surveillance solution. Whether you are a first-time buyer or upgrading an existing system, this DVR combines advanced features with ease of use — making it a smart choice for safeguarding your property.
