Model

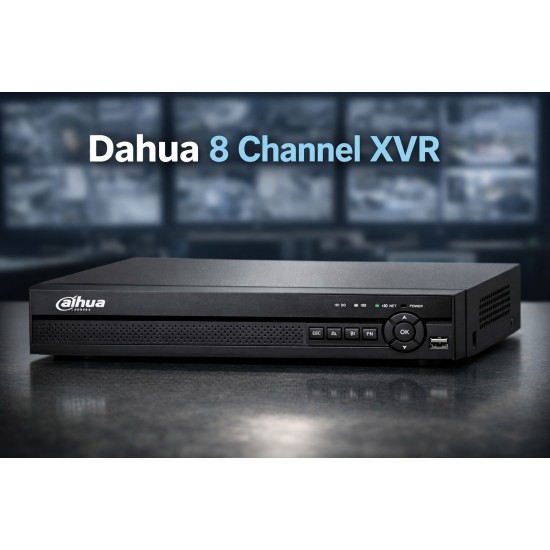

Dahua XVR1B08-I
System
Main Processor Embedded processor
Operating System Embedded Linux
Video
Video Input 8 Channel BNC HDCVI AHD TVI CVBS
IP Camera Support Up to 10 Channel
Video Compression Smart H265 Plus H265 Smart H264 Plus H264
Recording Resolution 1080N 720p 960H D1 CIF
Video Output 1 HDMI 1 VGA
Display Resolution Up to 1920 × 1080
Audio
Audio Input 1 Channel RCA
Audio Output 1 Channel RCA
Two Way Talk Supported
Audio Compression G711A G711U PCM
Storage
SATA Interface 1 SATA Port
Maximum HDD Capacity Up to 6TB
Backup USB Network
Network
Ethernet Port 1 RJ45 10 100 Mbps
Mobile Access Android iOS
Network Protocol HTTP HTTPS TCP IP IPv4 IPv6 FTP DDNS
USB
2 USB 2.0 Ports
Power
Power Supply DC 12V 1.5A
Power Consumption Less than 7W Without HDD
Physical
Dimensions 197 × 202.9 × 41.5 mm
Weight Approximately 0.56 kg
Operating Temperature Minus 10 Degree Celsius to Plus 45 Degree Celsius
