| External Interface | |
| Network Interface | RJ-45 (10/100 Base-T) |
| General | |
| Brand | Dahua |
| Model | DH-IPC-HFW1230V-A-I4-B |
| Basic Information | |
| STORAGE | Network Storage: FTP |
| Camera | |
| Resolution | 1920× 1080 at 25/30 fps |
| Shutter Time | Auto/Manual 1/3 s–1/100,000 s |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 2MP |
| IR Distance | 50 m |
| Camera Feature | Day & Night: Auto(ICR)/Color/B/W Min. Illumination: 0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux SNR (dB): ＞56 dB Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° Field of View: H: 83°; V: 44°; D: 99° Iris Type: Fixed DORI Distance: D: 53.7 m, O: 21.5 m, R: 10.7 m, I: 5.4 m IR LEDs: 4 (IR LED) IR Distance: Up to 50m Illuminator Control: Auto; Manual |
| Audio Input / Output | G.711a; G.711Mu; G.726; PCM |
| Lens | |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Lens | 3.6 mm |
| Aperture | F2.0 Max |
| Physical Specifications | |
| Material | Metal + plastic |
| Main Features | |
| Video Resolution | Video Compression: H.265; H.264; H.264B; 264H; MJPEG Resolution: 1080p (1920 × 1080); 1.3M (1280 × 960) 720p (1280 × 720); D1 (704 × 576/704 × 480) VGA (640 × 480); CIF (352 × 288/352 × 240) Main Stream: 1920 × 1080@(1–25/30 fps) Sub Stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Smart Codec: Smart H.265+; Smart H.264+ Video Frame Rate: 1920 × 1080@1–25/30 fps, 704 × 576@1–25 fps,704 × 480@1–30 fps Stream Capability: 2 streams Video Bit Rate: H.264: 32 kbps–6144 kbps; H.265: 32 kbps–6144 kbps Day/Night: Auto(ICR)/Color/B/W BLC: Yes HLC: Yes WDR: 120 dB Gain Control: Auto Noise Reduction: 3D NR Region of Interest (ROI): Yes (4 areas) Mirror: Yes Privacy Masking: 4 areas Others Smart Illumination: Yes Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Network & Connectivity | |
| WiFi | Protocol: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP: Interoperability: ONVIF (Profile S); CGI API: Yes User/Host: 6 (Total bandwidth: 36 M) Client: iOS; Android Web Browser: IE; Chrome; Firefox App: SmartPSS Lite; DSS; DMSS |
| Camera & Audio | |
| Microphone | Yes |
| Physical Specification | |
| Color | White |
| Power | |
| Power Consumption | Basic: 1.5 W (12 VDC); 2.3 W (PoE) Max. (ICR Switch + H.265 + IR intensity): 3.9 W (12 VDC); 4.9 W (PoE) |
| Power Supply | 12 VDC//PoE |
| Security | |
| Water Protection | IP67 |
| Other Features | |
| Other Features | Smart Illumination: Yes Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) General Alarm: Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 178.5 mm × 94.0 mm × 88.5 mm (7.03" × 3.70" × 3.48") |
| Weight | Net Weight: 0.49 kg (1.08 lb) Gross Weight: 0.85 kg (1.87 lb) |
| Warranty Information | |
| Warranty | 1-Year |

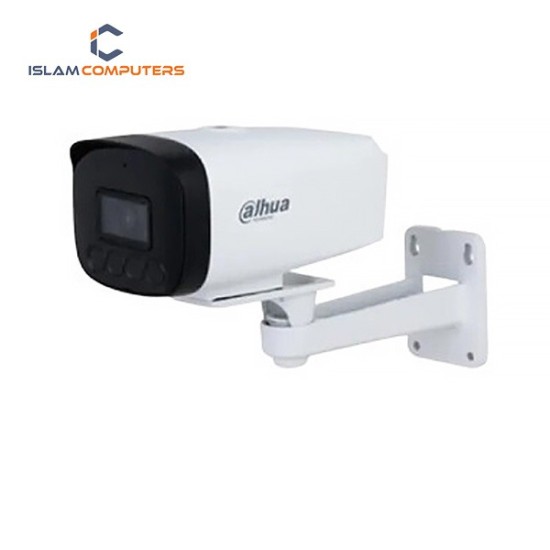

The Dahua DH-IPC-HFW1230V-A-I4-B IR Bullet 2MP IP Camera is a reliable and professional surveillance solution designed for homes, offices, shops, warehouses, commercial buildings, and other security applications. With its 2MP Full HD resolution, this network bullet camera delivers clear and detailed video monitoring, helping users keep a closer watch on important areas throughout the day and night.
Designed with a durable bullet-style housing, the camera is suitable for both indoor and outdoor surveillance installations. Its IR night vision capability provides clear monitoring in low-light and completely dark environments, making it a practical choice for security systems that require continuous observation. The intelligent infrared illumination helps provide consistent nighttime visibility while reducing excessive exposure in nearby areas.
The DH-IPC-HFW1230V-A-I4-B is an IP network camera, allowing video to be transmitted through a network connection to compatible NVRs, monitoring systems, computers, or other supported devices. This makes it suitable for modern IP-based CCTV installations where centralized monitoring and recording are required.
With its 2MP image resolution, the camera can capture useful visual details for everyday security monitoring. It can be deployed at entrances, gates, corridors, parking areas, retail spaces, offices, and other locations where dependable video surveillance is important.
The camera's built-in microphone/audio functionality can provide additional monitoring capabilities where supported by the connected surveillance system. This can be useful for applications where visual monitoring and audio monitoring are required together.
The compact bullet form factor allows flexible installation on walls, ceilings, and other suitable surfaces. Its professional design also blends well with commercial and residential security environments.
For customers looking to upgrade an existing CCTV system or install a new IP surveillance solution, the Dahua DH-IPC-HFW1230V-A-I4-B offers a practical combination of Full HD video, infrared night vision, network connectivity, and dependable surveillance performance.
Buy the Dahua DH-IPC-HFW1230V-A-I4-B IR Bullet 2MP IP Camera from Islam Computers, Tangail, Bangladesh, your trusted destination for genuine CCTV cameras, NVRs, networking products, computer hardware, and security solutions. Get reliable products, competitive pricing, and professional customer support for your surveillance requirements.
