- Stock: In Stock
- Brand: Dahua
- Model: DH-IPC-HFW1230TL2-S5
Key Features
- Image Sensor: 1/2.8" CMOS
- Resolution: Max 2MP (1920 × 1080) @25/30 fps.
- Lens: 3.6mm, Aperture: F2.0, IR Distance: 30 meters
- Features: Motion detection, video tampering, IP67, Smart Codec, Abnormality Detection
| Network | |
| Interoperability | ONVIF(Profile S); CGI; P2P |
| Network Interface | RJ-45 (10/100 Base-T) |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
| Web Browser | IE Chrome Firefox |
| PoE (Power Over Ethernet) | |
| PoE Standard | 802.3af |
| General | |
| Brand | Dahua |
| Model | DH-IPC-HFW1230TL2-S5 |
| Main Features 1 | |
| Alarm | Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception |
| Camera | |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360 |
| Day & Night | Auto (ICR)/Color/B/W |
| Resolution | 1920 (H) × 1080 (V) |
| Image Sensor | 1/2.8" CMOS |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| IR Distance | UP to 30 m (98.4 ft) (IR) |
| IR LEDs | 2 (IR LED) |
| WDR | DWDR |
| Physical Specifications | |
| Material | Plastic |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 3.6 mm; |
| Field of View | 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° |
| Close Focus Distance | 3.6 mm: 0.8 m (2.6 ft) |
| Iris Type | Fixed |
| DORI Distance | 3.6 mm: 49.7 m(163.1 ft), 19.9 m(65.3 ft), 9.9 m(32.5 ft), 5.0 m(16.4 |
| Aperture | F2.0 |
| Video | |
| Gain Control | Auto; manual |
| Main Stream | 1920 × 1080@1–25/30 fps |
| Noise Reduction | 3D NR |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Compression | H.265; H.264; H.264B; 264H; MJPEG (Only supported by the sub stream) |
| Sub Stream | 704 × 576@1–25 fps704 × 480@1–30 fp |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Stream Capability | 2 streams |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Power | |
| Power Consumption | Basic power consumption: 1.3 W (12 VDC); 2.1 W (PoE) Max. power consumption (ICR + H.265+IR intensity): 2.9 W (12 VDC); 3.9 W (PoE) |
| Power Supply | 12V DC/PoE (802.3af) |
| Security | |
| Water Protection | IP67 |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 198.9 mm × 80.2 mm × 76.2 mm (7.83" × 3.16" × 3.00")(L × W × H) |
| Weight | Net Weight: 0.25 kg (0.55 lb) Gross Weight: 0.40 kg (0.88 lb) |
| Warranty Information | |
| Warranty | 1-Year |

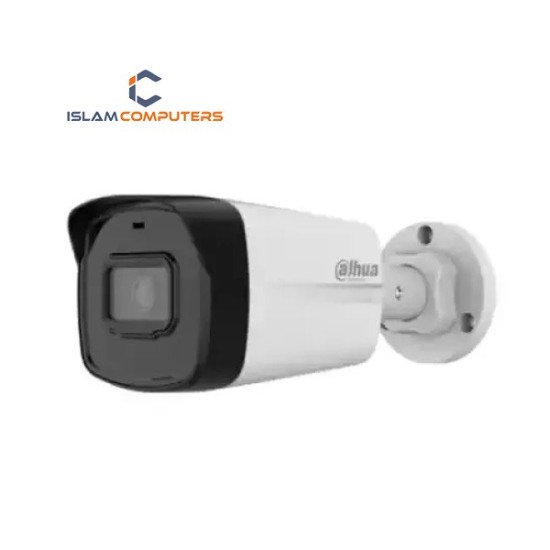

Dahua DH-IPC-HFW1230TL2-S5 2MP Bullet IP Camera – Full HD IP Surveillance Solution | Islam Computers Tangail
The Dahua DH-IPC-HFW1230TL2-S5 2MP Bullet IP Camera is a reliable and high-performance surveillance solution designed to provide crystal-clear security monitoring for homes, offices, shops, warehouses, and commercial properties. Featuring a 2MP CMOS image sensor, this camera delivers sharp Full HD 1080p video resolution, ensuring every detail is captured with precision.
Equipped with advanced H.265+ compression technology, the camera reduces bandwidth and storage consumption without compromising video quality. This makes it an ideal choice for users who want efficient long-term recording with lower storage costs. The built-in Smart IR technology provides excellent night vision performance up to 30 meters, ensuring clear black-and-white images even in complete darkness.
The sturdy metal bullet design with IP67 weatherproof rating ensures durability in harsh weather conditions such as rain, dust, and extreme temperatures. Whether installed indoors or outdoors, this camera maintains stable and reliable performance throughout the year.
With its fixed lens option (commonly 2.8mm or 3.6mm), users can select the appropriate viewing angle according to their monitoring needs. The camera also supports features like DWDR (Digital Wide Dynamic Range), 3D DNR (Digital Noise Reduction), and BLC (Backlight Compensation) to enhance image clarity in challenging lighting conditions.
The Dahua DH-IPC-HFW1230TL2-S5 supports PoE (Power over Ethernet), allowing both power and data transmission through a single cable, simplifying installation and reducing wiring complexity.
Now available at Islam Computers, Tangail, Bangladesh, this 2MP Bullet IP Camera is an excellent choice for anyone seeking affordable yet professional-grade security surveillance.
