| General | |
| Brand | Dahua |
| Model | DH-AC12 AC1200 |
| Key Features | |
| Data Rate | 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps |
| Button | 1 × eSync Button 1 × Reset Button |
| Frequency | Dual Band (2.4 GHz and 5 GHz) |
| Network Standard | 2.4 GHz: IEEE 802.11b/g/n 5 GHz: IEEE 802.11a/n/ac |
| Encryption | WPA; WPA2; WPA3; WPA/WPA2; WPA2/WPA3 |
| Ports | 1×10/100/1000 Mbps WAN Port 3×10/100/1000Mbps LAN Port |
| Power | |
| Power Supply | Full load: 10.5 W Idling: 2.1 W |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | 220 mm × 144 mm × 179 mm (8.66" × 5.67" × 7.05") (L × W × H) |
| Weight | 0.26 kg (0.57 lb) |
| Color | Black |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |

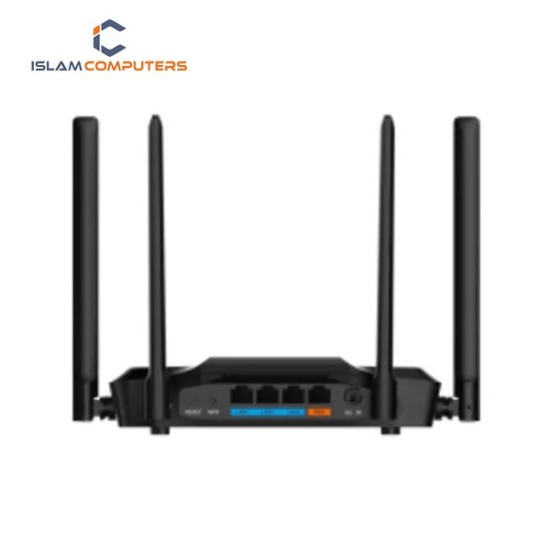

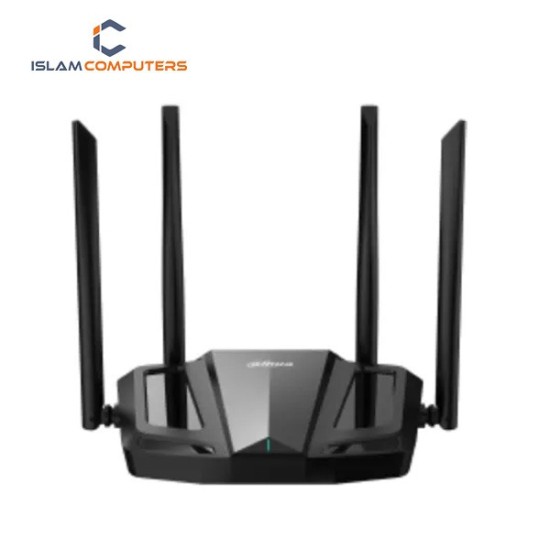

The Dahua DH-AC12 AC1200 Mbps Gigabit Dual-Band Wi-Fi Router is a powerful and cost-effective networking solution designed to meet the connectivity needs of modern homes, small offices, and shared living spaces. Built on the reliable Dahua reputation, this router delivers fast, stable internet with broad coverage and easy management — making it ideal for streaming, gaming, video conferencing, and day-to-day browsing.
At the heart of the DH-AC12 is dual-band AC1200 Wi-Fi technology, offering up to 1.2 Gbps of combined wireless data throughput. This is split between the 2.4 GHz band (up to 300 Mbps) — perfect for everyday browsing and smart devices — and the 5 GHz band (up to 867 Mbps) — great for high-speed activities like 4K streaming, online gaming, and large file transfers.
Equipped with four high-gain external antennas and beamforming technology, the Dahua AC12 router extends strong Wi-Fi signals across wider areas and reduces dead zones, helping ensure reliable performance even in multi-room settings. The inclusion of bi-directional MU-MIMO further enhances simultaneous connections, allowing multiple smartphones, tablets, laptops, smart TVs, and gaming consoles to stay connected without significant speed drops.
Security and network management are also strengths of this router. With support for WPA, WPA2, and WPA3 encryption standards, your internet connection is protected from unauthorized access. It also includes useful features like guest Wi-Fi, so visitors can use the internet without accessing your main network, and parental controls to manage internet access for children or shared users.
The DH-AC12 doesn’t just shine in wireless performance — it’s also equipped with gigabit Ethernet ports. One 10/100/1000 Mbps WAN port connects to your modem, while three 10/100/1000 Mbps LAN ports provide fast wired connections for desktops, game consoles, or smart TVs, maximizing speed and reliability where it matters most.
Physically, the router features a sleek black design that fits well in any setup, with straightforward indicator lights and buttons for reset and WPS for quick setup and device pairing. Its efficient design uses less than 12 W of power, making it economical to run around the clock.
Overall, the Dahua DH-AC12 AC1200 router combines speed, secure connectivity, and flexible control in a package that’s both user-friendly and capable of serving demanding network needs — an excellent choice for anyone looking to upgrade their home or small office wireless environment.
