| General | |
| Brand | ASRock |
| Model | H610M-HVS/M.2 R2.0 |
| Basic Information | |
| Operating System | Microsoft Windows® 10 64-bit / 11 64-bit |
| Supported CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) 6+1+1 Power Phase design Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | Intel® H610 |
| STORAGE | Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment |
| RAM | Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 non-ECC, unbuffered memory up to 3200 Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Form Factor | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm Solid Capacitor design |
| Graphics | Intel® Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and D-Sub ports by independent display controllers Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection |
| Connector | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Memory | |
| Slots | CPU: 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* Chipset: 1 x PCIe 3.0 x1 Slot (PCIE1) Supports NVMe SSD as boot disks |
| Network & Connectivity | |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Ports & Slots | |
| Rear I/O | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Support | |
| Software | Software ASRock Motherboard Utility (A-Tuning) UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Warranty Information | |
| Warranty | 3-Years |

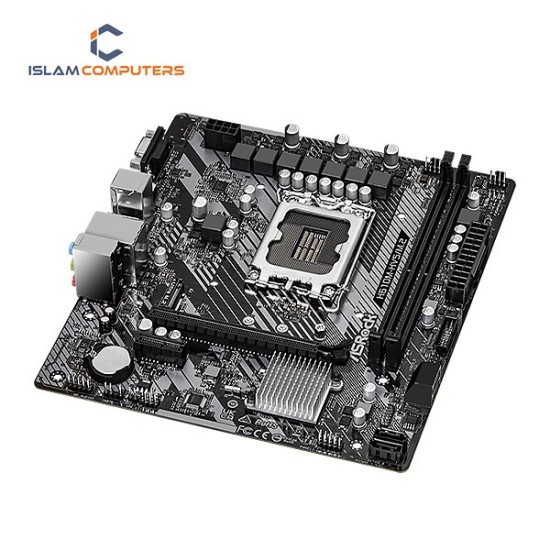

The ASRock H610M-HVS/M.2 R2.0 Intel Motherboard is a compact and reliable Micro ATX motherboard designed for building or upgrading modern desktop PCs based on Intel processors. Featuring the Intel H610 chipset and LGA1700 socket, it supports compatible Intel Core, Pentium Gold, and Celeron processors, making it a practical choice for office computers, home PCs, educational systems, and budget-friendly desktop builds.
This motherboard supports DDR4 memory, allowing users to build a responsive and efficient system for everyday computing, office applications, web browsing, multimedia, and multitasking. With support for high-speed DDR4 memory depending on the installed processor and configuration, users can create a balanced system that meets their performance requirements.
One of the key advantages of the ASRock H610M-HVS/M.2 R2.0 is its M.2 PCIe storage support. Installing a compatible M.2 SSD can significantly improve system boot times, application loading, and overall responsiveness compared with traditional hard drives. The motherboard also provides SATA connectivity for additional storage devices such as 2.5-inch SSDs and HDDs.
Its Micro ATX form factor makes it suitable for a wide variety of PC cases while providing the essential expansion and connectivity options needed for a modern desktop computer. The board includes PCI Express expansion support for compatible graphics cards and other expansion devices.
For connectivity, the motherboard provides essential USB, display, audio, and networking interfaces, making it suitable for everyday desktop applications. Its integrated LAN and audio solutions help users create a complete PC without requiring additional expansion cards for basic networking and sound functionality.
ASRock also incorporates practical technologies and protection features to provide dependable operation. The motherboard is designed with a user-friendly BIOS and convenient hardware configuration options, making it suitable for both first-time PC builders and experienced users.
Whether you are building an affordable office computer, upgrading an existing desktop, or creating a compact home PC, the ASRock H610M-HVS/M.2 R2.0 offers a practical combination of Intel processor compatibility, DDR4 memory support, M.2 storage capability, and essential connectivity.
Get the ASRock H610M-HVS/M.2 R2.0 Intel Motherboard from Islam Computers, Tangail, Bangladesh, your trusted destination for genuine computer components, motherboards, processors, RAM, SSDs, and other PC hardware. Choose ASRock for a dependable foundation for your next desktop PC build.
