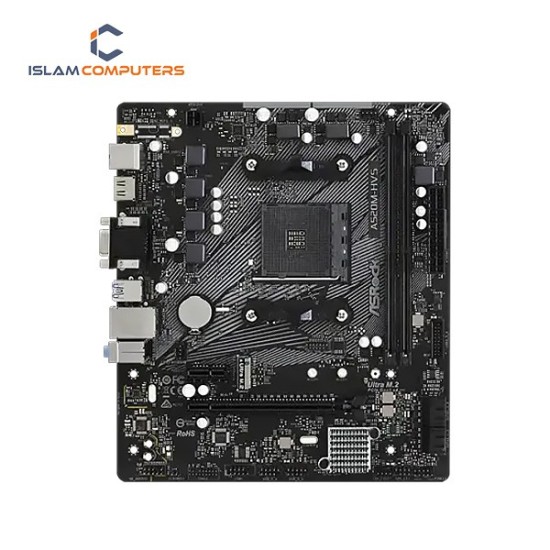

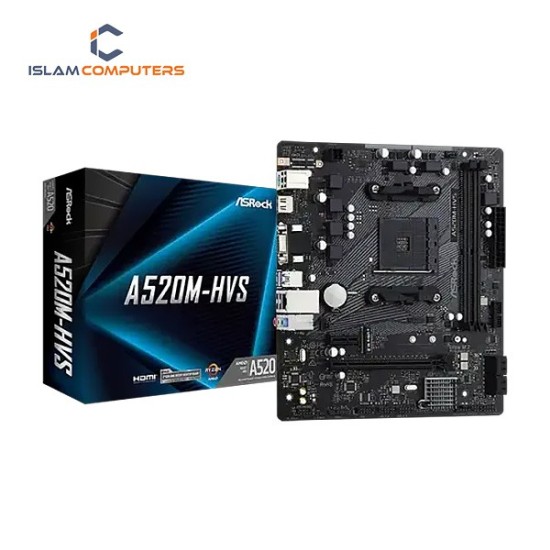

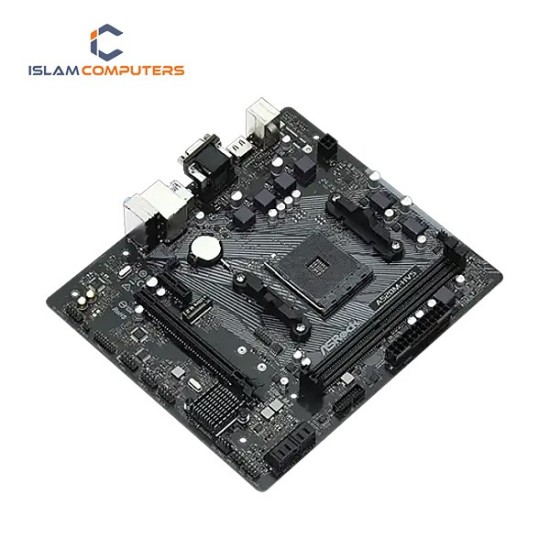

Name: ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
Brand: ASRock
Availability: InStock

ASRock A520M-HVS AMD AM4 Micro ATX Motherboard

Stock: In Stock
Brand: ASRock
Model: A520M-HVS

Based on 0 reviews. - Write a review

0৳

Ex Tax: 0৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

AMD A520 chipset with AM4 socket
Supports AMD Ryzen™ AM4 Socket 3000, 4000 G & 5000 & 5000 G-Series
2× DDR4 DIMM slots supporting up to 64GB RAM
1× Ultra M.2 PCIe Gen3 x4 NVMe SSD slot

View more info

Specification

General
Brand	ASRock
Model	A520M-HVS
Basic Information
Supported CPU	Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors 6 Power Phase design
Chipset	AMD A520
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Form Factor	Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm Solid Capacitor design
Audio	7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) Supports Surge Protection
Expansion Slots
PCI	1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* 1 x PCI Express 3.0 x1 Slot
Memory
Maximum Memory	64GB
Supported Memory	Dual Channel DDR4 Memory Technology AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* Supports Extreme Memory Profile (XMP) memory modules 15μ Gold Contact in DIMM Slots
Type	DDR4
Slots	2 x DIMM
Connector & Ports
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone
D-Sub (s)	1 x D-Sub
HDMI	1 x HDMI
Internal I/O Ports	1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
LAN Port (s)	PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supported Storage	CPU: 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* Chipset: 4 x SATA3 6.0 Gb/s Connectors
TPM (Trusted Platform Module )	1 x SPI TPM Header

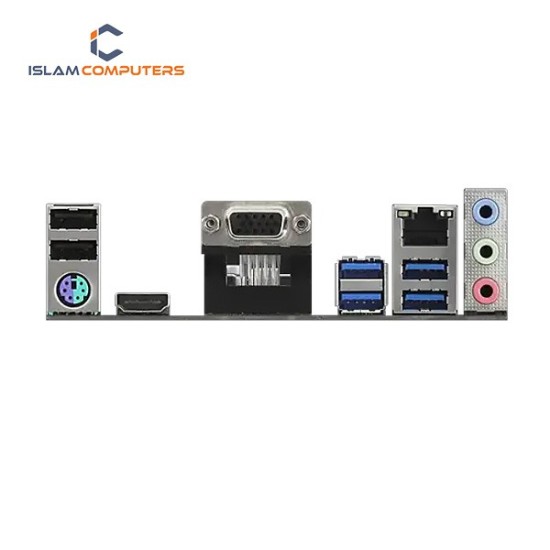

USB (s)	2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Graphics
Graphics	- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 Port - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft PlayReady
Max Shared Memory	16GB
Additional Info
Specialty	ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Warranty Information
Warranty	3-Years

Description

Build your AMD PC with the ASRock A520M-HVS Micro ATX Motherboard. Supports Ryzen 3000, 4000G & 5000 Series processors, DDR4 RAM, Ultra M.2 NVMe, PCIe 3.0, and Gigabit LAN. Available now at Islam Computers, Tangail, Bangladesh.

The ASRock A520M-HVS AMD AM4 Micro ATX Motherboard is an excellent choice for users looking to build a reliable, budget-friendly AMD desktop PC for everyday computing, office work, content creation, and casual gaming. Powered by the AMD A520 chipset, this motherboard delivers stable performance and broad compatibility with AMD Ryzen™ 3000 Series, Ryzen™ 4000 G-Series, and Ryzen™ 5000 Series desktop processors (except certain older generations), making it an ideal foundation for modern PC builds.

Designed in the compact Micro ATX form factor, the ASRock A520M-HVS fits easily into most Micro ATX and ATX computer cases while providing essential expansion and connectivity options. It features 2 DDR4 DIMM slots supporting up to 64GB of high-speed DDR4 memory, enabling smooth multitasking, faster application performance, and efficient system responsiveness.

For high-speed storage, the motherboard includes an Ultra M.2 slot supporting PCIe Gen3 x4 NVMe SSDs, delivering significantly faster boot times, rapid file transfers, and improved application loading compared to traditional SATA drives. Additionally, multiple SATA III ports allow users to connect HDDs and SATA SSDs for expanded storage capacity.

The motherboard also provides a PCIe 3.0 x16 slot for installing dedicated graphics cards, making it suitable for gaming, multimedia editing, and graphics-intensive workloads. Integrated Gigabit LAN ensures stable and fast wired internet connectivity, while USB 3.2 Gen1 ports provide high-speed connections for external storage devices and peripherals.

ASRock's high-quality components, including Premium 50A Power Choke, High Density Glass Fabric PCB, and Solid Capacitor design, enhance durability, improve power efficiency, and ensure long-term reliability. The motherboard also includes comprehensive protection against moisture and electrical interference, helping extend the lifespan of your PC.

With support for modern BIOS features and user-friendly system configuration, the ASRock A520M-HVS is suitable for students, professionals, home users, and gamers seeking dependable performance without exceeding their budget.

Purchase the ASRock A520M-HVS AMD AM4 Micro ATX Motherboard from Islam Computers, Tangail, Bangladesh, your trusted source for genuine ASRock motherboards, processors, graphics cards, SSDs, RAM, and other computer components. We offer competitive prices, authentic products, professional customer support, and dependable after-sales service to help you build the perfect PC.

Review

Tags: ASRock A520M-HVS , ASRock Motherboard , AMD A520 Motherboard , AM4 Motherboard , Ryzen Motherboard , Ryzen 5000 Motherboard , Ryzen 4000G Motherboard , Ryzen 3000 Motherboard , DDR4 Motherboard , Micro ATX Motherboard , M.2 NVMe Motherboard , PCIe 3.0 Motherboard , Gigabit LAN Motherboard , USB 3.2 Gen1 Motherboard , Budget AMD Motherboard , Gaming Motherboard , Desktop Motherboard , Computer Components , Islam Computers , Tangail , Bangladesh
